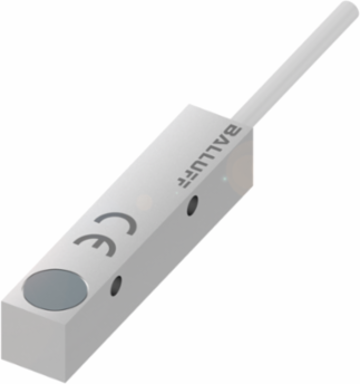

Balluff BES Q12EC-PSD40B-ES05 Temperature-rated inductive sensors BES Q12EC-PSD40B-ES05
- MPN: BES Q12EC-PSD40B-ES05
- PPN: BAL-BES05N8
CAD
$592.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our temperature-rated sensors are designed for temperatures up to 230 °C: both the housing design and the cable design are optimized for higher temperatures. The electronics are completely integrated. Some variants are also available as high pressure sensors, which makes using them even more flexible.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 12 x 12 x 59 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Cable, 5.0 m, Silicone
- Ambient temperature
- -25-130 °C
- Approval/Conformity
- CE, EAC, WEEE
Style12x12
Range4 mm
Switching frequency500 Hz
Material sensing surfaceLCP
Operating voltage Ub10-30 VDC
IP ratingIP65
