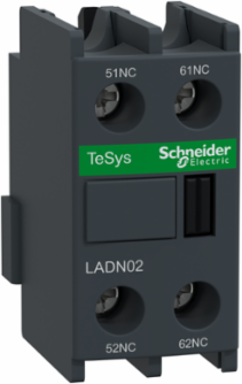

Schneider Electric LADN02 TeSys Deca Auxiliary Contact Block, 2NC, Screw Clamp Terminals
- MPN: LADN02
- PPN: SCH-LADN02
CAD
$56.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Features
- Featuring two normally closed (NC) instantaneous contacts, this auxiliary block is the industry standard for creating electrical interlocks and status signaling in complex control circuits. It provides a reliable mechanical "fail-safe" that prevents conflicting contactors from energizing simultaneously, protecting your motors from phase-to-phase shorts and ensuring smooth, sequenced industrial operations.
- Engineered for seamless integration with the Schneider Electric TeSys Deca (formerly TeSys D) range, this module features a front-mounting clip-on mechanism that requires zero tools for installation. This "plug-and-play" design reduces panel assembly time and allows for rapid field upgrades without disturbing existing power wiring or increasing the footprint of your motor starter.
- Built to endure millions of mechanical operating cycles, the LADN02 is designed for the rigorous environments of automated manufacturing and heavy-duty infrastructure. The high-conductivity serrated contacts provide a "wiping" action that clears dust and oxidation during every movement, ensuring consistent electrical continuity even in vibrating or dusty industrial enclosures.
- Equipped with protected screw-clamp terminals, this auxiliary contact block meets IP2x "finger-safe" standards to prevent accidental contact with live electrical points during maintenance. This design choice not only simplifies compliance with OSHA and NFPA 70E safety regulations but also provides peace of mind for technicians performing routine inspections on energized control cabinets.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
- Rated Operational Voltage
- 690 V AC 25-400 Hz
- Short-Time Rating
- 100 A 1 s, 120 A 500 ms, 140 A 100 ms
- Minimum Switching Voltage
- 17 V
- Mechanical Durability
- 30 Mcycles
- Width
- 26 mm (1.02 in)
- Tightening Torque
- 1.7 N.m
- Pole Contact Composition
- 2 NC
- Operating Temperature
- -5 to 60 C (23 to 140 F)
- Operating Altitude
- 3000 m (9843 ft)
- Product Certifications
- CB, UL, CSA, CCC, EAC, UKCA, RoHS, REACh
- Mercury Free
- Yes
- Protection Type
- gG fuse 10 A
- Colour
- Dark grey
- Ambient Air Temperature For Operation
- -5 to 60 C
- Range Compatibility
- TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
- Mounting Location
- Front
- Product Or Component Type
- Auxiliary contact block
Conventional Free Air Thermal Current10 A at 60 C
Making Capacity140 A AC, 250 A DC
Minimum Switching Current5 mA
Non-Overlap Time1.5 ms on energisation and de-energisation
Height48 mm (1.89 in)
Depth42 mm (1.65 in)
Connection TypeScrew clamp terminals 1-4 mm² flexible and rigid, with or without cable end
IP Degree of ProtectionIP20 IEC 60529
Storage Temperature-60 to 80 C (-76 to 176 F)
StandardsEN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
Protective TreatmentTH IEC 60068
Country of OriginFrance
Ambient Air Temperature For Storage-60 to 80 C
Operating EnvironmentNormal environment
Device Short NameLADN
