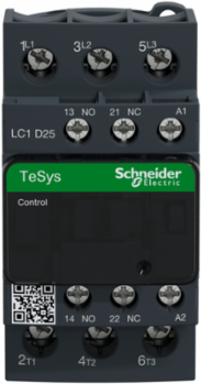

Schneider Electric LC1D25M7 TeSys D Contactor, 3P 25A, 220V Coil, Green Premium Compliant
- MPN: LC1D25M7
- PPN: SCH-LC1D25M7
CAD
$275.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). They can be used to create motor starters for almost any type of application. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Engineered with a robust 25-Amp inductive rating ($AC-3$) at up to 440V, this 3-pole contactor reliably manages three-phase motors up to 11 kW (15 HP at 460V). It handles the intense inrush currents of industrial machinery, preventing contact welding and ensuring uninterrupted operation for your pumps, fans, and conveyors.
- Equipped with a versatile M7-coded 220V AC coil compatible with both 50Hz and 60Hz frequencies, this device seamlessly integrates into global control networks. The premium coil design accommodates standard voltage fluctuations, eliminating coil chatter and dropouts to protect your upstream automation components from electrical noise.
- Featuring factory-installed, mechanically linked auxiliary contacts, the LC1D25M7 provides immediate status feedback to your PLC or control panel indicators. The mirror-contact architecture ensures that if a main power pole welds, the NC auxiliary contact stays open, maintaining safety compliance in emergency-stop and interlocking systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, France, Indonesia, Singapore
Depth92 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz standard
- Maximum Motor Phase Current
- 25 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 450 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating3 hp at 230/240 V AC 50/60 Hz for 1 phase motors2 hp at 115 V AC 50/60 Hz for 1 phase motors7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors15 hp at 460/480 V AC 50/60 Hz for 3 phase motors20 hp at 575/600 V AC 50/60 Hz for 3 phase motors, 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 8 Gn for 11 ms)
- Mounting Support
- plate, rail
- Tightening Torque
- power circuit 2.5 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- Control Circuit Voltage
- 220 V
- [Icw] Rated Short-time Withstand Current
- 240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
- [Uc] Control Circuit Voltage
- 220 V, 220 V AC 50/60 Hz
- Connections - Terminals
- control circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible without cable endpower circuit: 1 1-10 mm² - cable stiffness: flexible with cable endpower circuit: 1 1.5-10 mm² - cable stiffness: solid without cable endpower circuit: 2 2.5-10 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable endpower circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1717166017648144, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.274446711691528
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Device Short Name
- LC1D
- Flame Retardance
- V1 conforming to UL 94
- Mechanical Durability
- 15 Mcycles
- Operating Time
- 12...22 ms closing4...19 ms opening
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 127 kg CO2 eq.
- Inf Motor Phase Current
- 25 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 301.125
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 85 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.65 Mcycles 25 A AC-3 <= 440 V, 1.4 Mcycles 40 A AC-1 <= 440 V, 1.65 Mcycles 25 A AC-3e <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw11 kW at 380/400 V AC 50/60 Hz (AC-3e), 11 kW at 415/440 V AC 50/60 Hz (AC-3e), 15 kW at 500 V AC 50/60 Hz (AC-3e), 15 kW at 660/690 V AC 50/60 Hz (AC-3e), 5.5 kW at 220/230 V AC 50/60 Hz (AC-3)11 kW at 380/400 V AC 50/60 Hz (AC-3), 11 kW at 415/440 V AC 50/60 Hz (AC-3)15 kW at 500 V AC 50/60 Hz (AC-3), 15 kW at 660/690 V AC 50/60 Hz (AC-3), 5.5 kW at 220/230 V AC 50/60 Hz (AC-3e)5.5 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole3.2 W AC-11.25 W AC-3, 1.25 W AC-3e
Utilisation CategoryAC-3, AC-3e, AC-1, AC-4
Certificate AgencyUL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
[Ie] Rated Operational Current25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8986268399705376, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]123 kg CO2 eq., 123.4211523629405
Local Publishable Date2026-07-07
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI110229EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
Coil Technologywithout built-in suppressor module
Contact CompatibilityM2
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation2-3 W at 50/60 Hz
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTHIEC 60068-2-30
ReturnabilityYes
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1102029EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %66
Width Nominal45 mm
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Package Weight(Lbs)425.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI110229EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102029EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Reach Free ShvcYes
Carbon Footprint126.76594251636737
Environmental DisclosureENVPEP1102029EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C60-70 °C with derating
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
