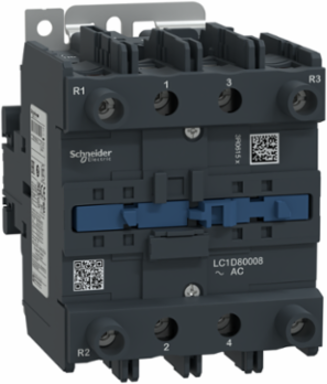

Schneider Electric LC1D80008G7 TeSys Deca Contactor 4P 125A 120V AC Screw Clamp Terminals
- MPN: LC1D80008G7
- PPN: SCH-LC1D80008G7
CAD
$891.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 110A resistive load rating. Contactor is supplied with a 120 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.78 inches wide and 5.51 inches deep. It weighs 4.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Engineered with a specialized 4-pole layout containing 2 Normally Open (NO) and 2 Normally Closed (NC) power poles, this unit eliminates the need for stacking multiple individual relays. It allows industrial control panel builders to seamlessly isolate alternating or split-phase lines and handle changeover control circuits in a single footprint.
- Rated for continuous duty up to 125A at voltages less than or equal to 440V AC under AC-1 utilization criteria, this heavy-duty contactor prevents premature contact welding during high thermal demands. It provides long-term electrical durability (up to 0.8 million cycles) for large commercial heating banks, multi-stage lighting arrays, and ventilation systems.
- The built-in 120V AC coil operates natively on dual frequencies (50/60 Hz), resolving cross-border voltage drop-out concerns and ensuring compatibility with standard commercial control transformers. This dual-rated mechanism gives electrical engineers drop-in compatibility for standard industrial enclosures without requiring secondary step-down or rectification hardware.
- Designed for fast integration into tight spatial layouts, the open-style frame supports both standard 35mm DIN rail snap-on mounting and direct surface panel screw-down installation. Its compact physical footprint (127mm H x 96mm W x 140mm D) allows plant maintenance teams to complete rapid field replacements and maximize precious real estate inside crowded control panels.
- Featuring high-torque, box-lug screw clamp terminations that hold up to 106.2 lbf.in (12 N.m) of force on the power circuit, the open-style layout prevents loose connections that lead to thermal hotspots. The finger-proof IP20 housing shrouds standard live terminal points, protecting industrial electricians from accidental direct contact while maintaining quick diagnostic probe access.
- Fully certified under UL 60947-4-1, CSA C22.2 No 14, CE, IEC, and Marine specifications, this contactor seamlessly drops into international export equipment without encountering regulatory hold-ups. The official Schneider Green Premium status guarantees compliance with strict RoHS and REACh environmental regulations, fulfilling corporate sustainability and tracking requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Depth140 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz, AC 50/60 Hz
- Irms Rated Making Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.3...0.6 Uc (-40-55 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz
Maximum Operating Rate3600 cyc/h at 60 °C
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz), shocks contactor open 8 Gn for 11 ms), vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
- Operating Time
- 20...35 ms closing, 6...20 ms opening
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector flat Ø 6 to Ø 8 mm, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
- [Icw] Rated Short-time Withstand Current
- 640 A 40 °C - 10 s for power circuit, 990 A 40 °C - 1 s for power circuit, 135 A 40 °C - 10 min for power circuit, 320 A 40 °C - 1 min for power circuit
- [Ui] Rated Insulation Voltage
- power circuit 600 V CSA, power circuit 600 V UL, power circuit 1000 V IEC 60947-4-1
- Hold-in Power Consumption In Va
- 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4.670481955153259, 5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 12.519404112267281
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Contact Compatibility
- M1
- Device Short Name
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 6-10 W at 50/60 Hz
- Number Of Poles
- 4P
- Pole Contact Composition
- 2 NO + 2 NC
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Range Of Product
- TeSys Deca
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 149 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage
- 120 V
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 76
- Width Nominal
- 96 mm
- [Ith] Conventional Free Air Thermal Current
- 125 A (at 60 °C) for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Inrush Power In Va245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
Mounting Supportrail, plate
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Certificate AgencyCCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
[Uc] Control Circuit Voltage120 V, 120 V AC 50/60 Hz
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end, screw clamp terminals, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]0.24697464924060986, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.4 kg CO2 eq., 0.3541146484504795
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]132 kg CO2 eq., 131.6902173913043
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Compatibility CodeLC1D
Contactor Applicationresistive load
Electrical Durability0.8 Mcycles 125 A AC-1 <= 440 V
Flame RetardanceV1 conforming to UL 94
Mechanical Durability4 Mcycles
Overvoltage CategoryIII
Power Dissipation Per Pole12.5 W AC-1
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Utilisation CategoryAC-1
Connections Terminalsscrew clamp terminals
Rated Thermal Current Hv125 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh1971
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal127 mm
[Ie] Rated Operational Current125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Rated Thermal Current (Ith)125 A
Package Weight(Lbs)1.785 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C, 60-70 °C with derating
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint149.4811927564159
Environmental DisclosureENVPEP1102005EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1102005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
