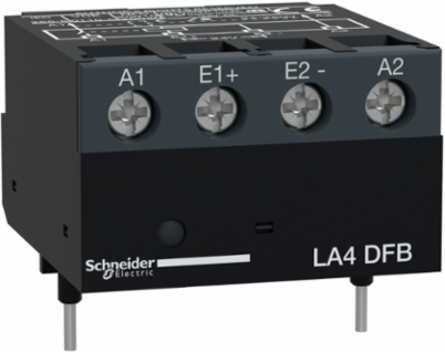

Schneider Electric LA4DFB TeSys Deca Interface Module Relay, 24V DC / 250V AC, 3P
- MPN: LA4DFB
- PPN: SCH-LA4DFB
CAD
$130.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Electromechanical relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115.
Features
- Engineered specifically for the TeSys Deca product family, this low-signal interface module offers flawless mechanical and electrical pairing with 3-pole contactors from LC1D09 up to LC1D115. It mounts via a coil wiring adapter, providing a clean, integrated footprint that saves valuable DIN rail space without requiring complex custom brackets.
- This electromechanical relay interface is purpose-built to act as a bridge between low-power electronic controllers and high-power industrial control circuits. It accepts a standard 24V DC input signal at a minimal current draw of just 25 mA, allowing your sensitive PLC, I/O module, or embedded micro-controller to safely actuate heavy-duty contactors equipped with 24V to 250V AC coils (B7 to U7 coil codes) without risk of overcurrent damage to the controller.
- Designed with integrated diode protection, this interface amplifier safely clamps harmful transient voltage spikes generated when the contactor coil de-energizes. It also features a guaranteed voltage state 0 threshold below 2.4V and state 1 at 17V, preventing common field issues like ghost voltages or leakage currents from causing accidental contactor latching or output-card burnout.
- Built to demanding global automation benchmarks, this module carries full UL and CSA certifications and conforms to the rigorous IEC 60255-5 dielectric test standard. With an electrical durability rated for up to 10 million cycles under normal electrical loads and a rugged operating temperature range of -25 C to 55 C (-13 F to 131 F), it provides the continuous, uninterrupted service life required for critical industrial processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Tunisia, United States
Complementary Attributes
- Control Circuit Voltage Limits
- 17...30 V at 20 °C DC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current State 0 Guaranteed
- <= 2 mA, <= 2 mA
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.005923327895595431, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.4506117455138661
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1925
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LA4D
- Device Short Name
- LA4D
- Energy Efficiency Optimized
- False
- Immunity To Microbreaks
- 4 ms
- Mounting Mode
- top mounted
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- built-in by diode
- Range Of Product
- TeSys Deca
- Software Version
- v5.9.4
- Technology Type
- electromechanical
- Voltage State 1 Guaranteed
- 17 V
- Pep Code
- ENVPEP1112053EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 12 mm
- [Ue] Rated Operational Voltage
- control circuit 24...250 V AC
- [Us] Rated Supply Voltage
- 24 V DC
- Package Weight(Lbs)
- 49.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Voltage State 0 Guaranteed< 2.4 V, < 2.4 V
Connections - Terminalscontrol circuit connector 1 1-2.5 mm²solid without cable endcontrol circuit connector 2 1-2.5 mm²flexible without cable endcontrol circuit connector 2 1-2.5 mm²solid with cable endcontrol circuit connector 2 1-2.5 mm²solid without cable end, control circuit connector 1 1-2.5 mm²flexible with cable end, control circuit connector 1 1-2.5 mm²flexible without cable end, control circuit connector 1 1-2.5 mm²solid with cable end, control circuit connector 2 1-2.5 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.14990619902120714
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Current Consumption25 mA 20 °C
Electrical Durability10 Mcycles 240 V
Heat Dissipation0.6-0.6 W control circuit
Local SignallingLED indicator
Number Of Poles3P
Product Or Component Typeinterface module
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionIt provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %20
[Ith] Conventional Free Air Thermal Current8 A 50 °C
[Ui] Rated Insulation Voltage250 V - control circuit IEC 60947-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.6064412724306687
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1D09...D150
- Pep Code
- ENVPEP1112053EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Permissible Ambient Air Temperature Around The Device-25-70 °C, -25-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1112053EN
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- interface module
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000198
ETIM 9EC000198
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
