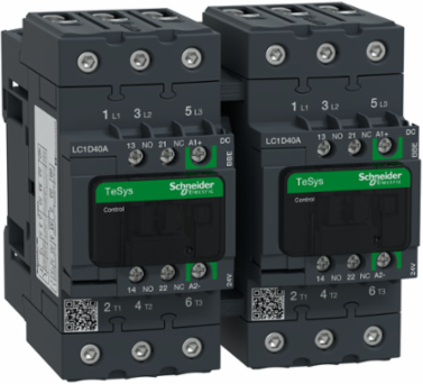

Schneider Electric LC2D40ABBE TeSys Deca Reversing Contactor 3P 40A 24V DC Coil 119mm Width
- MPN: LC2D40ABBE
- PPN: SCH-LC2D40ABBE
CAD
$1066.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). Rated 40A AC-3 18.5kW@400V, it includes a 24V DC low consumption electronic coil for direct PLC control, 2NO+2NC aux contacts, mechanical interlock. It provides low consumption 24V DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic 24V DC coil, low consumption, for a direct control by a PLC output 24V DC / 500mA. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden, United States
Depth120 mm
Physical Attributes
- Color
- Gray SE GREY 6)Green SE GREEN 2)
Complementary Attributes
- Control Circuit Type
- DC DC low consumption, DC DC low consumption
- Maximum Horse Power Rating
- 10 hp at 230/240 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors5 hp at 230/240 V AC 60 Hz for 1 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors30 hp at 460/480 V AC 60 Hz for 3 phase motors, 30 hp at 575/600 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits<= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC<= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC, <= 0.1 Uc (-40-70 °C):drop-out DC0.8...1.2 Uc (-40-60 °C):operational DC1...1.2 Uc (60-70 °C):operational DC
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
- Motor Power Kw
- 11 kW at 220...230 V AC 50 Hz18.5 kW at 380...400 V AC 50 Hz22 kW at 415 V AC 50 Hz, 22 kW at 440 V AC 50 Hz, 22 kW at 500 V AC 50 Hz30 kW at 660...690 V AC 50 Hz
- Power Dissipation Per Pole
- 2.4 W AC-35.4 W AC-1, 2.4 W AC-3e
- Utilisation Category
- AC-3, AC-1, AC-3e
- [Icw] Rated Short-time Withstand Current
- 100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit320 A 40 °C - 10 s for power circuit, 720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable endpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable endpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²solid, power circuit EverLink BTR screw connectors 2 1-25 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.22194339884224623, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.14396868592458148, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 36 kg CO2 eq., 36.243715356828375
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 1.5 mOhm - Ith 60 A 50 Hz for power circuit
- Compatibility Code
- LC2D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Number Of Poles
- 3P
- Pole Contact Composition
- 3 NO
- Product Name
- TeSys Deca Advanced
- Protective Treatment
- TH IEC 60068-2-30
- Returnability
- Yes
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1607010EN
- Pep Verification Date
- 2025-07-25
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 64
- Width Nominal
- 119 mm
- [Uc] Control Circuit Voltage
- 24 V24 V DC
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1signalling circuit 690 V IEC 60947-1
- Rated Thermal Current (Ith)
- 60 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
Mounting Supportrail, plate
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm
Control Circuit Voltage24 V
[Ie] Rated Operational Current60 A (at <60 °C) at <= 440 V AC-1 for power circuit40 A (at <60 °C) at <= 440 V AC-3 for power circuit, 40 A (at <60 °C) at <= 440 V AC-3e for power circuit
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.2111256134685835
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 14.707659819861778
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1607010
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Device Short NameLC2D
Interlocking Typemechanical
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typereversing contactor
Range Of ProductTeSys Deca Advanced
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.2.4
Total Lifecycle Carbon Footprint55 kg CO2 eq.
Inf Motor Phase Current40 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh402.96
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal122 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit
[Ue] Rated Operational Voltagepower circuit 690 V AC 25...400 Hz
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Halogen-free StatusHalogen free plastic parts and cables product
Package Weight(Lbs)2.368 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Halogene Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP1607010EN
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1607010EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint54.528412874925564
Circularity ProfileENVEOLI1607010
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-07-25
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca Advanced
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
