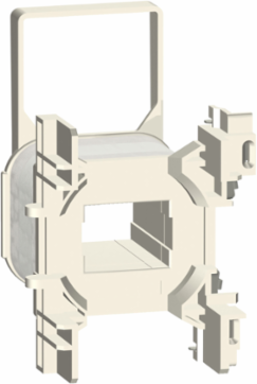

Schneider Electric LXD3Q7 TeSys Deca Contactor Coil 380V AC 50/60Hz for 40-65A Contactors
- MPN: LXD3Q7
- PPN: SCH-LXD3Q7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed to enhance the functionality of your industrial automation systems, the TeSys Deca contactor coil operates efficiently at 380V AC, functioning seamlessly within both 50Hz and 60Hz electrical environments. This robust component by Schneider Electric is specifically engineered for use with 40-65A contactors, ensuring reliable performance and dependable control in various applications. Ideal for automation and control tasks, this coil exemplifies the precision and durability essential for today's demanding industrial settings.
Documentation & Downloads
Specifications
Additional
- Control Circuit Voltage
- 380 V AC 50/60 Hz
- Maximum Operating Rate
- 3600 cyc/h at 60 °C
- Coil Technology
- Without built-in suppressor module
- Heat Dissipation
- 4-5 W at 50/60 Hz
- Mechanical Durability
- 6 Mcycles
- Average Resistance
- 512 Ohm at 20 °C
- Net Weight
- 0.07 kg (0.15 lb)
- Compatibility Current Rating
- 40-65 A
- Product Compatibility
- LC1DT60A, LC1DT80A, LC1D40A-D65A
- REACH Compliance
- Free of SVHC
- RoHS Exemption
- Yes
- Country of Origin
- France
Control Circuit TypeAC 50/60 Hz
Hold-In Power Consumption15 VA (cos phi 0.3) at 50/60 Hz (20 °C)
Control Circuit Voltage LimitsDrop-out: 0.3-0.6 Uc; Operational: 0.8-1.1 Uc at 50 Hz, 0.85-1.1 Uc at 60 Hz (at <60 °C)
Inductance29.9 H
Inrush Power160 VA (cos phi 0.75) at 50/60 Hz (20 °C)
Ambient Operating Temperature-5 to 60 °C (23 to 140 °F)
Product TypeContactor coil
Brand RangeTeSys
RoHS CompliancePro-active compliance, Toxic heavy metal free, Mercury free, PVC free
China RoHS CompliancePro-active declaration (out of China RoHS legal scope)
Warranty18 months
