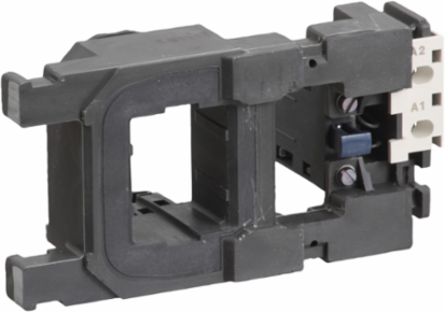

Schneider Electric LX1FH2772 TeSys F Contactor Coil 277V AC 40-400Hz, 0.75 kg, 2400 cyc/h
Schneider Electric LX1FH2772 TeSys F Contactor Coil 277V AC 40-400Hz, 0.75 kg, 2400 cyc/h
- MPN: LX1FH2772
- PPN: SCH-LX1FH2772
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$682.40/ EA
Description
TeSys F AC coil 277V 40-400Hz (voltage code W7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F265, F330. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.75 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Control Circuit Voltage Limits
- drop-out 0.35...0.55 Uc 40...400 Hz 55 °C) || operational 0.85...1.1 Uc 40...400 Hz 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 8-8 W 40...400 Hz
Inrush Power In Va650-650 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-In Power Consumption In Va10-10 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Specifications
- Average Resistance
- 113 Ohm inrush 20 °C || 2444 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz
- Product Or Component Type
- contactor coil
- Maximum Operating Rate
- 2400 cyc/h 55 °C
- Product Compatibility
- LC1F265 || LC1F330
- Mechanical Durability
- 10 Mcycles
[Uc] Control Circuit Voltage277 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Operating Time100...170 ms opening || 40...65 ms closing
Device Short NameLX1FH
