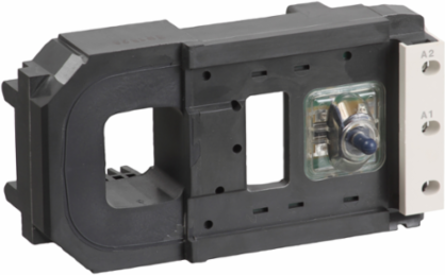

Schneider Electric LX1FK220 TeSys F Contactor Coil 220-230V AC 40-400Hz, 1.15kg, Green Premium
- MPN: LX1FK220
- PPN: SCH-LX1FK220
CAD
$1776.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F500. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 35.5 Ohm inrush 20 °C || 915 Ohm holding 20 °C
- Control Circuit Type
- AC 40...400 Hz
- Product Or Component Type
- contactor coil
- Inductance Of Closed Circuit
- 4.55 H
- Operating Time
- 100...170 ms opening || 40...75 ms closing
- Device Short Name
- LX1FK
[Uc] Control Circuit Voltage220...230 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F500
Mechanical Durability10 Mcycles
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
- Coil Technology
- without built-in suppressor module
- Heat Dissipation
- 18-18 W 40...400 Hz
Inrush Power In Va1100-1100 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-In Power Consumption In Va18-18 VA 40...400 Hz cos phi 0.3 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight1.15 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
