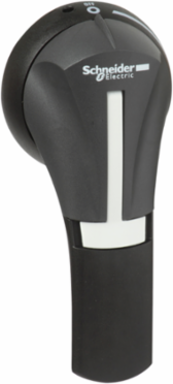

Schneider Electric GS2AH130 TeSys GS External Rotary Handle, Black, NEMA 3R, 30-400A
- MPN: GS2AH130
- PPN: SCH-GS2AH130
CAD
$125.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GS external operating handle for 3-pole 30-400A UL fuse switch-disconnectors GS2EEU, GS2EU, GS2GU, GS2JU, GS2MU, GS2QU. Black handle with grey front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed with a shaft for external operator GS2AE, several lengths available (to be ordered separately). Green Premium compliant (RoHS/REACh).
Features
- Designed specifically for the TeSys GS series 30A to 400A disconnect switches, this external rotary handle provides a direct, mechanical link for safe power management. Using a factory-matched actuator ensures a precise, slip-free interface between the handle and the switch shaft, allowing industrial operators to maintain full control over motor isolation and circuit disconnection.
- Built with a rugged, high-performance seal, this black rotary handle is fully rated for IP65 and NEMA 4X protection, making it impervious to dust, rain, and corrosive chemicals. This heavy-duty construction is ideal for food processing plants, wastewater facilities, and outdoor pumping stations where standard hardware would fail due to moisture or grit penetration.
- To ensure maximum technician safety during maintenance, this handle features an integrated locking mechanism capable of holding up to three individual padlocks in the "OFF" position. This allows for strict adherence to OSHA Lockout-Tagout (LOTO) protocols, preventing accidental re-energization while multiple teams are working on the same downstream equipment.
- Engineered for front-mounted through-door installation, this handle allows operators to toggle power states safely from the outside of the control cabinet. This significantly reduces the risk of arc flash exposure by keeping the enclosure door securely closed during routine operation, providing an essential layer of safety for plant personnel and maintenance electricians.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 30 A, 60 A, 100 A, 200 A, 400 A
- Handle Positions
- 2 positions I-O
- NEMA Degree of Protection
- NEMA 3R/12
- Net Weight
- 0.24 kg (0.53 lb)
- Certifications
- UL, CSA
- Product Type
- rotary handle
- Color
- black
Handle Typeexternal frontal
Mountingfront mounting
PadlockableYes
Material ComplianceRoHS Compliant, REACh Compliant, Toxic Heavy Metal Free, Mercury Free, Reach Free Of SVHC
Warranty18 months
Front Plate Colorgrey
Country of OriginTunisia
