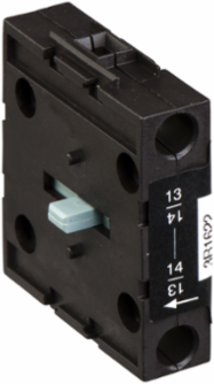

Schneider Electric VZN05 Auxiliary Contact Block, 1 NO Late Make for TeSys VN12/VN20, 690V AC
- MPN: VZN05
- PPN: SCH-VZN05
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it includes 1NO contact rated for AC and DC operation. VZN05 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. For use with Vario switch types VN12 and VN20, it is mounted on one side of the switch body. It includes 1NO contact rated for AC operation until 690V and DC operation until 250V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Auxiliary contacts module, including 1NO "late make" contact, for Vario switch types VN12 and VN20. Rated for operation in AC-15 operation until 690V and DC-01 operation until 250V. To be installed on one side of a switch body.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States

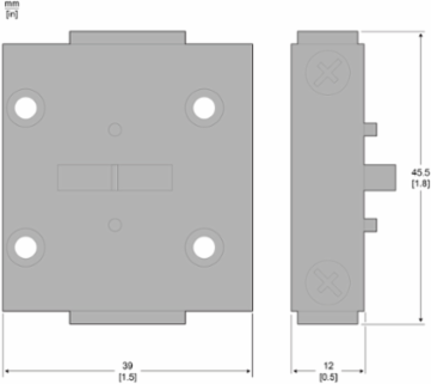

Depth39 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 30000 cycles DC-11, 50000 cycles AC-21
- Network Type
- AC, DC
- Connections - Terminals
- screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end, screw clamp terminals 2 1-2.5 mm² solid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.04924551102448407
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.12319508762000031
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- late-make
- Device Short Name
- VZN
- Mechanical Durability
- 50000 cycles
- Performance Level
- standard
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Software Version
- v5.9.4
- Tightening Torque
- 0.7-0.7 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 74.6352
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 45.5 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationleft, right
Certificate AgencyGL, CSA, UL
Carbon Footprint Of The Distribution Phase [A4]0.0023619537223242225, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.006060703945746572, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 4.986699999999999
Local Publishable Date2026-01-07
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeauxiliary contact
Contacts Type And Composition1 NO
Fire Resistance960 °C IEC 60695-2-1
Network Frequency50/60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Pep CodeENVPEP2211017EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %42
Width Nominal12 mm
[Ithe] Conventional Enclosed Thermal Current4 A
[Uimp] Rated Impulse Withstand Voltage6 kV
Package Weight(Lbs)23.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- VN20, VN12
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 5.167563256312554
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2211017EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
