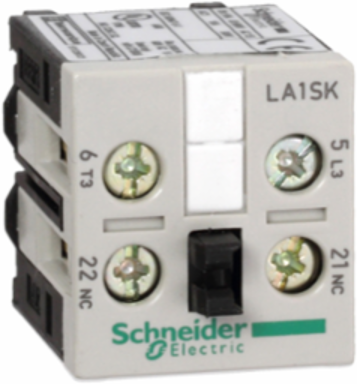

Schneider Electric LA1SK11 TeSys SK Auxiliary Contact Block 1NO+1NC, 10A/690V AC, IP2X
- MPN: LA1SK11
- PPN: SCH-LA1SK11
CAD
$40.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 1NO+1NC contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Product Compatibility
- LC1SK
- Device Short Name
- LA1SK
Connections - Terminalsscrew clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible with cable end || screw clamp terminals 1 0.35-6 mm²flexible without cable end || screw clamp terminals 2 0.35-1.5 mm²flexible without cable end
Pole Contact Composition1 NO + 1 NC
Auxiliary Contacts Operationinstantaneous
Complementary
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Associated Fuse Rating
- 10 A gL conforming to IEC 60947 || 10 A gL conforming to VDE 0660
- Mounting Location
- front side
- Tightening Torque
- 0.8 N.m screw clamp terminals
[Ue] Rated Operational Voltage690 V AC <= 400 Hz
Net Weight0.022 kg
[Ui] Rated Insulation Voltage690 V IEC 60947 || 690 V BS 5424 || 690 V VDE 0110 group C || 690 V CSA C22.2 No 14
Width27 mm
Environment
- Product Certifications
- CB Scheme || CE || UKCA || EAC || cULus
- Standards
- CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1 || UL 60947-5-1
- Ambient Air Temperature For Storage
- -50-70 °C
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP2X
Protective TreatmentTC IEC 60068
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
