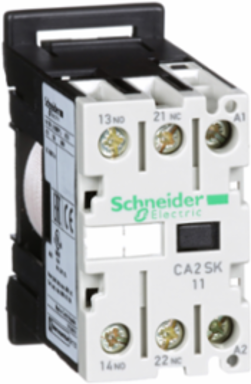

Schneider Electric CA2SK11T7 TeSys SK Control Relay, 1NO+1NC, 480V AC Coil, 0.132 kg
- MPN: CA2SK11T7
- PPN: SCH-CA2SK11T7
CAD
$103.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys SK mini-control relay, 2 contacts (1NO+1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It is provided with a 480V 50/60Hz AC control circuit, connection by screw terminals For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth55.5 mm
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C)
- Maximum Operating Rate
- 1200 cyc/h
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
- Operating Time
- 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing, 8...10 ms coil de-energisation and NC closing, 8...16 ms coil energisation and NC opening
- Certificate Agency
- CB Scheme, cULus, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
- Carbon Footprint Of The Distribution Phase [A4]
- 0.24178125098044448, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.016621456908985182, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 58 kg CO2 eq., 57.502201472752766
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- CA2SK
- Device Short Name
- CA2SK
- Heat Dissipation
- 1.4-1.4 W
- Mechanical Durability
- 10 Mcycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 59 kg CO2 eq.
- Pole Contact Comp
- 1 NO + 1 NC
- Control Circuit Voltage 21 Control Circuit Voltage
- 480 V
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 142.2624
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 56 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Hold-in Power Consumption In Va
- 4.2-4.2 VA (at 20 °C)
- Package Weight(Lbs)
- 122.470 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
Utilisation CategoryAC-15, DC-13
[Ue] Rated Operational Voltage<= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
Connections - Terminalsscrew clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable endscrew clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1755790570586023
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6264598023668569
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2448
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationcontrol circuit
Energy Efficiency OptimizedFalse
Inrush Power In Va16-16 VA (at 20 °C)
Pole Contact Composition1 NO + 1 NC
Product NameTeSys CASK
Protective TreatmentTC IEC 60068
Range Of ProductTeSys SK control relay
Software Versionv6.2.4
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21480 V
Pep CodeENVPEP1503003EN
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %63
Width Nominal27 mm
[Uc] Control Circuit Voltage480 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C, -20-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 58.562643040067655
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1503003EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-50-70 °C, -50-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys SK control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
