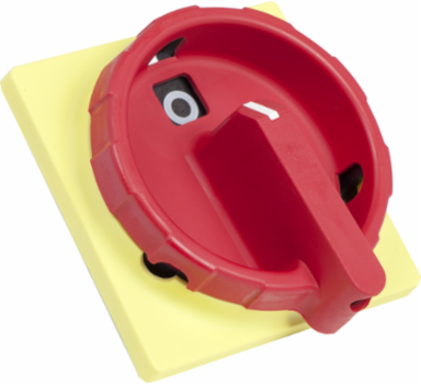

Schneider Electric KCD1YZ TeSys Vario Rotary Handle, 60x60mm, IP65, 1-3 Padlocking

MPN: KCD1YZ
PPN: SCH-KCD1YZ
UNSPSC: 39122221

$30.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

KCD1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a red & yellow operator, a 60x60mm front plate, single fixing, for emergency stop usage. KCD1YZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a red & yellow operator, a 60x60mm front plate and single fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. Low profile red handle with 60x60mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Padlockable with 3 padlocks.

Features

Reliable operation with padlockable handle
It is suitable for 2 operation methods: directly on switch body or through a shaft extension
It ensures high protection degree to the mounting
With numerous advantages to meet OEM’s most common needs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	82 g

Important Information Attributes

Carbon Footprint Of The Distribution Phase A4	0.01597907495353326, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.007189552520785192, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	29 kg CO2 eq., 28.971796700100345
Local Publishable Date	2026-07-28
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Base Dimension	60 x 60 mm
Device Short Name	KCD1
Marking	0 - 1
Product Or Component Type	rotary handle
Returnability	Yes
Software Version	v6.1
Total Lifecycle Carbon Footprint	30 kg CO2 eq.
Handle Color	red
Fixing Mode 26	hole 22.5 mm
Database Version	2023-02
Height Nominal	60 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	57

Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.21745123282272866
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.5 kg CO2 eq., 0.5179804374759645
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	switch operator
Fixing Mode	hole 22.5 mm
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Rotary Handle Padlocking	1 to 3 padlocks 4-8 mm
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Color	yellow
Rotary Handle Padlocking 1	1 to 3 padlocks 4-8 mm
Data Source	extrapolated product
Width Nominal	60 mm
Customs Code	8538908180
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	433.62

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	29.730396997873356
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	V02...V2
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2211006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
