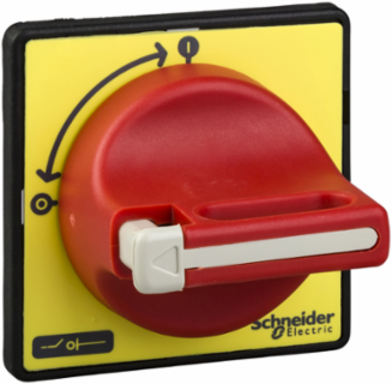

Schneider Electric KCD1PZ TeSys Vario Rotary Handle, Red/Yellow, 60x60 mm, IP65, Padlockable for 1-3 Locks

MPN: KCD1PZ
PPN: SCH-KCD1PZ

$30.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

KCD1PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red padlockable handle with a yellow 60x60mm front plate for mounting on door with a central fixing. It operates VN12, VN20, and V02 to V2 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, Germany, United States

Physical Attributes

Handle Color	red

Handle Front Plate Color	yellow

Important Information Attributes

Carbon Footprint Of The Distribution Phase [A4]	0.01597907495353326, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.007189552520785192, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	29 kg CO2 eq., 28.971796700100345
Local Publishable Date	2026-07-07
Stocking Flag	Y
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Base Dimension	60 x 60 mm
Device Short Name	KCD1
Marking	0 - 1
Product Or Component Type	rotary handle
Returnability	Yes
Software Version	v6.1
Total Lifecycle Carbon Footprint	30 kg CO2 eq.
Handle Color	red
Fixing Mode 26	hole 22.5 mm
Pep Code	ENVPEP2211006EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Czech Republic, CZ
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %	57
Width Nominal	60 mm
Package Weight(Lbs)	78.000 g
Warranty (In Months)	18

Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.21745123282272866
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.5 kg CO2 eq., 0.5179804374759645
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Compatibility Code	switch operator
Fixing Mode	hole 22.5 mm
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Rotary Handle Padlocking	1 to 3 padlocks 4-8 mm
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Color	yellow
Rotary Handle Padlocking 1	1 to 3 padlocks 4-8 mm
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	433.62
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; France, FR
Height Nominal	60 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908160

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Product Compatibility	VN20, VN12, V02...V2
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	29.730396997873356
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2211006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
