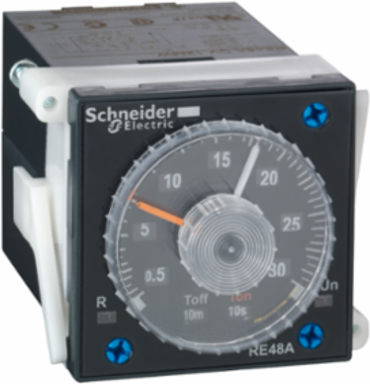

Schneider Electric RE48ACV12MW Dual Function Timer Relay, 5A, 0.02s-300h, 24-240V AC/DC
- MPN: RE48ACV12MW
- PPN: SCH-RE48ACV12MW
CAD
$141.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 22.5mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. This relay offers L, Li flashing functions. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Mexico, Singapore, United States
Physical Attributes
- Product Front Plate Size
- 48 x 48 mm
Complementary Attributes
- Line Rated Current
- 5 A
- Maximum Switching Voltage
- 250 V AC/DC
- Minimum Switching Current
- 100 mA
Maximum Switching Current5 A
Minimum Pulse Duration20 ms
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Type And Composition
- 2 C/O, 2 C/O timed contacts, AgNi (cadmium free)
- Function Available
- L- Asymmetrical flashing relay (starting pulse-off)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O
- Local Signalling
- 1 LED (yellow) for output relay state, LED indicator (green) for flashing: relay energised timing in progress, LED indicator (green) for on steady: relay energised, no timing in progress
- Protection Against Electric Shocks
- 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1
- Resistance To Electrostatic Discharge
- 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
- Setting Accuracy Of Time Delay
- +/- 5 % of full scale 25 °C IEC 61812-1, +/- 5 % of full scale 25 °C IEC 61812-1, +/- 5 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1+/- 5 % of full scale 25 °C IEC 61812-1, +/- 5 % of full scale 25 °C IEC 61812-1, +/- 5 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
- Time Delay Range
- 0.2...12 min, 5...300 s, 0.02...1.2 s, 0.5...30 min, 5...300 h, 0.2...12 h, 0.2...12 s, 0.5...30 s, 2...120 s, 0.05...3 s, 2...120 min, 5...300 min, 0.5...30 h, 2...120 h
- Voltage Drift
- +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V, +/- 1 %/V of the maximum setting value 24...48 V+/- 0.2 %/V of the maximum setting value 48...240 V, +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V, +/- 1 %/V of the maximum setting value 24...48 V
- Contacts Composition
- 2 C/O
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0183076923, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 15 kg CO2 eq., 15.345
- Local Publishable Date
- 2026-03-26
- Future Imap
- 76.01
- Stocking Flag
- Y
- Use Carbon Footprint
- 15.345
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Component Name
- RE48A
- Electrical Connection
- plug-in sub-base 11
- Functionality
- asymmetry
- Immunity To Microbreaks
- 5 ms
- Marking
- CE
- Number Of Functions
- 2
- Power Consumption In Va
- 6 VA 240 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Timer Relays
- Resistance To Electromagnetic Fields
- 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3
- Shape Of Pin
- cylindrical
- Sustainable Packaging
- Yes
- Vibration Resistance
- 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1512002EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential, In %
- 25
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Disturbance Radiated/Conducted
- class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 15.33
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 328.19
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 196.52
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 2.3185
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 381.4
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 328.19
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Typeselector switch front panel, without test button, without test button
Immunity To Voltage Dips30 % / 10 ms IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11, 95 % / 5 s IEC 61000-4-11
Mounting Supportbase mounted: socket, panel mounted: system supplied with the product
Repeat Accuracy+/- 0.2 % of the maximum setting value IEC 61812-1, +/- 0.2 % of the maximum setting value IEC 61812-1+/- 0.2 % of the maximum setting value IEC 61812-1, +/- 0.2 % of the maximum setting value IEC 61812-1
Resistance To Fast Transients2 kV IEC 61000-4-4 level 3 direct), 4 kV IEC 61000-4-4 level 4 direct)
Temperature Drift+/- 0.02 %/°C of the maximum setting value IEC 61812-1, +/- 0.02 %/°C of the maximum setting value IEC 61812-1+/- 0.02 %/°C of the maximum setting value IEC 61812-1, +/- 0.02 %/°C of the maximum setting value IEC 61812-1
Time Delay Typeasymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off), asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on), L, Li, asymmetrical flashing
Voltage Range0.85...1.1 Us AC, 0.9...1.1 Us DC
Certificate AgencyUL, C-tick, cULus, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2904246154, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.9749692308
Local Data StatusPublishable
Return IndicatorY
Future Msrp84.83
Stock Policy1
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1512002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRE48
Dielectric Strength2 kV 1 mA/1 minute IEC 61812-1
Electrical Durability100000 cycles
Housing Materialpolycarbonate
Immunity To Radioelectric Fields10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Mechanical Durability30000000 cycles
Pick Up Duration55 ms
Power Consumption In W2 W 240 V
Product Or Component Typepanel-mounted/plug-in timer relay
Reset Time25 ms on de-energisation
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Supply Voltage Num 324...240 V AC/DC 50/60 Hz
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony RE48 timing relay can be set between 0.02 seconds and 300 hours, has an output rating of 5A, is 48mm wide and can be supplied with 24V to 240V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools.It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Status display with 2 LEDs, visually inspect the status of you system without specialized tools.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh29.784
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Width Nominal48 mm
Connections - Terminalsscrew connectors
On-load Factor100 %
Package Weight(Lbs)131.000 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]15.345
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]56.182
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]13.549
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]328.19
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]53.212
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]53.212
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-50 °C, -20-50 °C
- Humidity Drift
- +/- 0.05 %/%RH of the maximum setting value IEC 61812-1, +/- 0.05 %/%RH of the maximum setting value IEC 61812-1, +/- 0.05 %/%RH of the maximum setting value IEC 61812-1, +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 17.6287015385
- Environmental Disclosure
- ENVPEP1512002EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1512002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Ip Degree Of ProtectionIP40 IEC 60529 housing), IP50 IEC 60529 front face)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1512002EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Relative Humidity93-93 % without condensation IEC 60068-2-3
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- panel-mounted/plug-in timer relay
Range Of ProductHarmony Timer Relays
ETIM
- ETIM 8
- EC001439
ETIM 9EC001439
Output Attributes
- Output Voltage
- 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15
- Output Type
- relay
Discrete Output Typerelay
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
