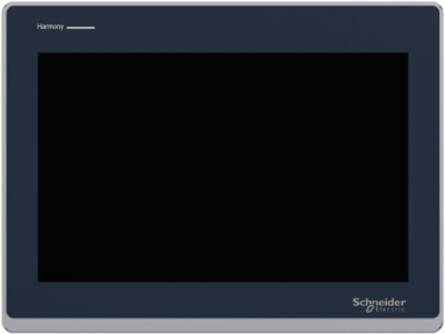

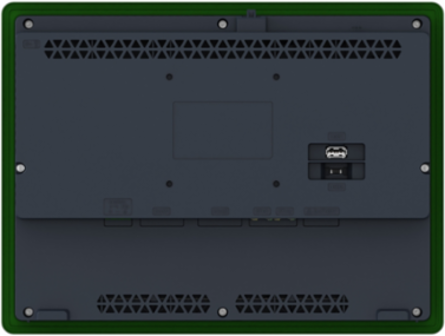

Harmony ST6 Touch Panel Screen, 12 Inch, 1280x800 Pixels, 2x Ethernet, 24V DC
Schneider Electric

Schneider Electric HMISTW6600 Harmony ST6 Touch Panel Screen, 12 Inch, 1280x800 Pixels, 2x Ethernet, 24V DC

  • MPN: HMISTW6600
  • PPN: SCH-HMISTW6600
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3032.68

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

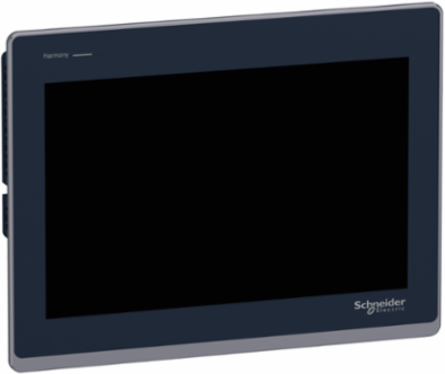

    This Basic Web HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 12.1 inch wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6 supports 2x Ethernet port, 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 313mm (width) x 235mm (height) x 50mm (depth) and weighs 1.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony ST6
    Processor Name
    ARM Cortex-A8
    Product Or Component Typetouch panel screen
    Software Designationweb interface for operator

    Complementary

    [Us] Rated Supply Voltage
    24 V DC +/- 20 %)
    Height
    235 mm
    Power Consumption In W
    18.4 W
    Supply
    external supply
    Marking
    CE
    Net Weight
    1.8 kg
    Backlight Lifespan
    50000 hours white
    Local Signalling
    status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED red, flashing operating || status LED red, off power supply (OFF)
    Display Size
    12 inch
    Display Colour
    16 million colours
    Width
    313 mm
    Front Material
    aluminium
    Depth
    50 mm
    Memory Description
    512 MB device memory || 512 MB backup memory || 128 kB user data memory
    Brightness16 levels
    Inrush Current30 A

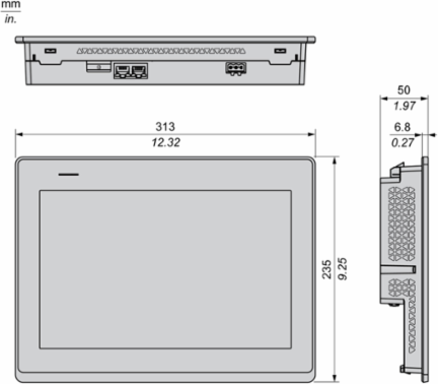

    Cut-Out Dimensions295 x 217 mm panel cut dimension
    Display Resolution1280 x 800 pixels WXGA
    Processor Frequency800 MHz
    Fixing Modeby 4 screws 1.6...5 mm thick panel UL 61010-2-201 || by 4 screws IEC 61131-2 || by 4 screws IEC 61000-6-2
    Touch Panelsingle touch analogue resistive
    Integrated Connection Type1 USB 2.0 type Aback || 1 Ethernet - female RJ45bottom
    Enclosure MaterialPC
    Port Ethernet10/100BASE
    Display Typecolour TFT LCD
    Realtime Clockbuilt-in 0...50 °C || built-in 10...90 % RH
    Character FontASCII || ASCII (European characters) || Katakana

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1810005EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Compliant with Exemptions
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1810005_V2

    Environment

    Product Certifications
    CSA || CE || UKCA
    Standards
    IEC 61000-6-4 || IEC 61000-6-2 || IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
    Electromagnetic Compatibility
    electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 || electrostatic discharge immunity test - test level: 8 kV (air discharge)
    Vibration Resistance
    +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 || 9.8 m/s² 9-150 Hz)
    Directives
    2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    Nema Degree Of Protection
    NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
    Operating Altitude
    2000 m
    Ambient Air Temperature For Operation0-50 °C
    Immunity To Microbreaks10 ms
    Shock Resistance147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
    Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel) || IP65 IEC 61131-2 front panel)
    Ambient Air Temperature For Storage-20-60 °C
    Relative Humidity10-90 % non-condensing
