Schneider Electric HMIST6700 Harmony ST6 Touch Panel Screen 15 Inch, 1366x768 Resolution, 2 COM, 2 Ethernet

  • MPN: HMIST6700
  • PPN: SCH-HMIST6700
  • UNSPSC: 43211506
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4805.89

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is a 15.6 inch wide with 16 million colors and 1,366 x 768 pixel resolution (FWXGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 412mm (width) x 268mm (height) x 50mm (depth) and weighs 2.70Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

    Features

    • Engineered with a 15.6-inch wide high-resolution TFT LCD display (1366 times 768 pixels FWXGA) and 16 million colors, the HMIST6700 offers crisp, high-fidelity visualization for detailed multi-screen machine interfaces. This means control room operators and field engineers can accurately monitor real-time diagnostics, complex trend graphs, and heavy data environments simultaneously on a single, expansive view panel without sacrificing text clarity.
    • Powered natively by EcoStruxure Operator Terminal Expert software, this interface platform utilizes a responsive multi-screen structure and customized layout objects (Dock Panels) to combine high densities of diagnostic variables into one fluid user experience. The drag-and-drop design environment drastically cuts programming time, enabling engineers to build modern, intuitive vector graphics and responsive industrial dashboards with minimized development overhead.
    • Built to withstand punishing industrial shop floors, this hardware features a rugged aluminum front panel delivering IP65, NEMA 4, and NEMA 13 ingress protection when properly enclosure-mounted. The resilient single-touch resistive touchscreen can be reliably operated with heavy industrial gloves and resists chemical splashes, moisture, and fine dust, ensuring a long 50,000-hour backlight lifespan in demanding packaging, HVAC, and food and beverage processing facilities

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, United States
    Depth50 mm
    Weight3449 g

    Physical Attributes

    Display Size15 inch

    Complementary Attributes

    Integrated Connection Type1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B2 Ethernet
    Us Rated Supply Voltage24 V DC +/- 20 %)

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Character FontASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
    Fixing Modeby 6 screws 1.6...5 mm thick panel UL 61010-2-201, by 6 screws IEC 61131-2, by 6 screws IEC 61000-6-2
    Product BrandSchneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
    Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
    Carbon Footprint Of The Distribution Phase A40.5517048775710088, 0.6 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A51 kg CO2 eq., 1.189415181194907
    Carbon Footprint Of The Use Phase B2 B3 B4 B61 326 kg CO2 eq., 1326.2444444444448
    Local Publishable Date2026-01-12
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1810005EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution1366 x 768 pixels FWXGA
    Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
    Front Materialaluminium
    Inrush Current30 A
    Memory Description1 GB device memory512 KB backup memory128 MB user data memory
    Port Ethernet10/100BASE
    Processor NameARM Cortex-A8
    Product Or Component Typetouch panel screen
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingNo
    Touch Panelsingle touch analogue resistive
    With Schneider Logoyes
    X With Schneider Logoyes
    Data Sourceextrapolated product
    Width Nominal412 mm
    Customs Code8537109170
    F Gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Silicone FreeNo
    Packaging Weight In G749
    Functional Unit Quantity1
    Reference Lifetime In Y15
    Recyclability Potential In %29
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsModbus, Uni-TE, third party protocols
    Local Signallingstatus LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
    Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
    Certificate AgencyCSA, CE, UKCA
    Carbon Footprint Of The End Of Life Phase C1 To C44.547207541625857, 5 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A3146 kg CO2 eq., 146.35448090107738
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Brightness16 levels
    Display Typecolour TFT LCD
    Enclosure MaterialPC
    Immunity To Microbreaks10 ms
    MarkingCE
    Number Of Pages200 application pages
    Power Consumption In W18.5 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony ST6
    Shock Resistance147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
    Supplyexternal supply
    Total Lifecycle Carbon Footprint1 479 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Display Color16 million colours
    Database Version2022-01
    Height Nominal268 mm
    Nbr. Of Units In Pkg.1
    Cut Out Dimensions394 x 250 mm panel cut dimension
    Halogen Free StatusProduct contains halogen above thresholds
    Warranty In Months18
    Functional Unit DescriptionTo provide a HMI during 15 years and a 100% rate at 9W, based on below function:& 10- 7" Touchscreen panel.& 10- I/O connectors(USB and Ethernet) .& 10- IP20 (rear panel) & IP65(front panel) conforming to IEC 61131-2
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh2430.9

    Environment Attributes Main

    Ambient Air Temperature For Storage-20-60 °C, -20-60 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint1478.8872529459138
    Circularity ProfileENVEOLI1810005EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-09-19
    Psr VersionPSR-0005-ed2-2016 03 29
    F Gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP1810005EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1810005EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typetouch panel screen
    Range Of ProductHarmony ST6

    ETIM

    ETIM 8EC001412
    ETIM 10EC001412
    ETIM 9EC001412

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable

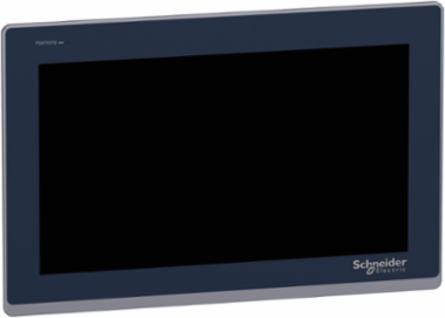

    Harmony ST6 Touch Panel Screen 15 Inch, 1366x768 Resolution, 2 COM, 2 Ethernet
