Schneider Electric XB5AA711237 Harmony XB5 Triple-Headed Push Button 22 mm, 2NO + 1NC, IP69K
- MPN: XB5AA711237
- PPN: SCH-XB5AA711237
CAD
$92.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

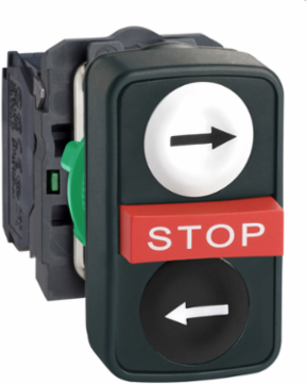

This Harmony XB5, triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "left arrow" and "right arrow" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- triple-headed push-button
- Fixing Collar Material
- plastic
- Head Type
- standard
- Connections - Terminals
- screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Bezel Material
- dark grey plastic
- Device Short Name
- XB5
Mounting Diameter22 mm
Operators Descriptionwhite ''right arrow'' - black ''left arrow'' - red ''STOP''
Shape Of Signaling Unit Headrectangular
Operator Profile2 flush - 1 central projecting STOP push-buttons
Device Presentationcomplete product
Contacts Type And Composition2 NO + 1 NC
Contact Operationslow-break
Complementary
- Contacts Usage
- standard contacts
- Operating Force
- 3.5 N NC changing electrical state || 3.8 N NO changing electrical state
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Net Weight
- 0.063 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Operator Profile
- red projecting, STOP white) || white flush, right arrow black) || black flush, left arrow white)
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability1000000 cycles
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- DNV || LROS (Lloyds register of shipping) || UL listed || GL || BV || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
