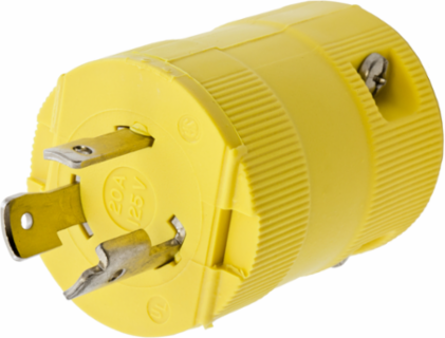

Hubbell Wiring Device-Kellems HBL23CM11V Twist-Lock Corrosion Resistant Plug, 20A, 125V AC, 2-Pole, Yellow
- MPN: HBL23CM11V
- UPC: 783585808161
- PPN: HBL-HBL23CM11V
- UNSPSC: 39121403
CAD
$25.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Valise® Plug, 20A, 125V AC, 2 Pole, 3 Wire Grounding, Yellow
Features
- Powerful cord grip prevents conductor slippage and strain on wiring terminals
- Totally insulated impact and crush resistant nylon body
- Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 2.50 in x 1.78 in x 1.78 in
- Horsepower - Maximum
- 1
- Length
- 2.50 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L5-20P
- Number of Wires
- 3-Wire Grounding
- Size
- 2.50 in x 1.78 in x 1.78 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.25 lb.
- Engineering Drawing 1 Display Text
- HBL23CM11V AutoCAD Drawing
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG VAL PLUG, CM, 20A 125V, L5-20P, YL
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Material - Mounting Hardware
- Cord Mounted
- Material
- Nylon
- BOX SIZE
- 4.000x10.000x8.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585808161
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height1.78 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL 94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorYellow
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesCorrosion Resistant
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width1.78 in
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL5-20P
Number Of Wires3-Wire Grounding
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number23CM11V
Cord Range0.325"-0.720"(8.26-18.3)
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
