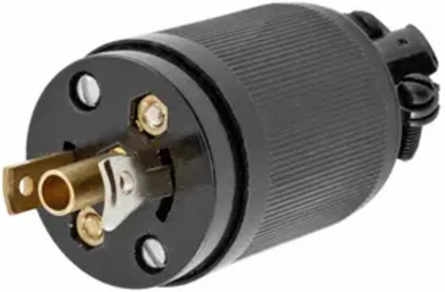

Hubbell Wiring Device-Kellems HBL7594 Midget Twist-Lock Male Plug, 15A 125V AC, 2-Pole, Nylon Cover
- MPN: HBL7594
- UPC: 783585237770
- PPN: HBL-HBL7594
- UNSPSC: 39121402
CAD
$27.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML-2P, Screw Terminal, Black nylon cover, phenolic body, multiple drive screw terminals
Features
- Abuse resistant nylon housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
- Totally insulated body adds extra measure of safety
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.17 in x 1.17 in x 2.45 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Industrial/Commercial
- Cord Type
- All Listed Portables
- NEMA Rating
- ML-2P
- Number of Wires
- 3-Wire
- Size
- 1.17 in x 1.17 in x 2.45 in
- Standard
- Certified to CSA C22.2 No.42;Listed to UL 498
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.17 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- ML-2P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7594
- Cable Range
- 0.300 - 0.430 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 4.123 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.000 in
- Pallet Weight
- 678.000 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height2.45 in
Length1.17 in
Amperage Rating15 A
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypePlugs
Wire Size#18 AWG to #14 AWG
Weight0.10 lb.
ConnectivityPressure Terminal Screws
Display SizeMidget Locking
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG, MIDGET 15A 125V, ML-2P
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.281"-0.421"(7.1-10.7)
Cord Diameter0.30-0.430 in
MaterialNylon
BOX SIZE3.300x8.400x3.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585237770
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585237779
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
