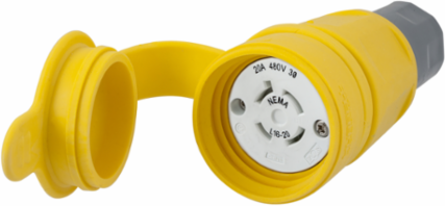

Hubbell Wiring Device-Kellems HBL27W76 Watertight Twist-Lock Connector 20A 3-Pole 480V AC, NEMA L16-20R, Yellow
- MPN: HBL27W76
- UPC: 783585131818
- PPN: HBL-HBL27W76
- UNSPSC: 39121421
CAD
$124.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Devices, Twist-Lock® Connector, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20R, Yellow
Features
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
Specifications
Additional
- Voltage
- 3 Phase 480 VAC
- Number of Poles
- 3-Pole
- Wire Count
- 4-Wire
- Cord Diameter
- 0.325-0.875 in
- Material
- Thermoplastic elastomer
- Max Temperature Rise
- 30°C max at rated current
- Certifications
- UL Listed, RoHS
- Country of Origin
- CN
Amperage20 A
NEMA RatingL16-20R
Dielectric Voltage2500 V AC
Size2.51 in x 2.51 in x 5.69 in
Operating Temperature Range-40°C to +60°C
UV ResistanceUV stabilized
ColorYellow
