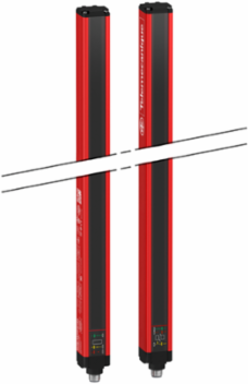

Telemecanique Sensors XUSL4E14F181N Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger protection, Std sensing range, Hp = 1810 mm, R=14 mm
- MPN: XUSL4E14F181N
- PPN: TES-XUSL4E14F181N
- UNSPSC: 46171620
CAD
$4701.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XUSL4E Type 4 Safety Light Curtain is designed for finger detection of operator in the vicinity of hazardous machinery. Its transmitter-receiver system creates 180 light beams with a protected height of 1810mm. Its PFHD reliability data is 3.71 x 10⁻⁸. It has an aluminum case and its integral LEDs offer a local Signaling for clearly display of device's status. It can be used as standalone sensor (i.e without safety control unit) or in association with an appropriate safety control unit. It has 2 NO Solid State PNP safety outputs (OSSDs) and meets the requirements of category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508 and Type 4 in compliance with EN/IEC 61496-1, EN/IEC 61496-2. Its operating temperature range is -20°C to +55°C and the sensing distance is 0m to 3m or 1m to 6m selectable by wiring.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety light curtains XUSL |
|---|---|
| Output Type | 2 safety outputs OSSD solid-state PNP arc suppression) |
| Minimum Object Diameter For Detection | 14 mm |
| Control Type | selected by wiring |
| Number Of Beams | 180 |
| Device Short Name | XUSL4E |
| Product Or Component Type | safety light curtain type 4 |
|---|---|
| Type Of Start | automatic || manual |
| Height Protected | 1810 mm |
| Product Specific Application | for finger protection |
| [Sn] Nominal Sensing Distance | 1-6 m by cabling || 0-3 m by cabling |
Complementary
| Electrical Connection | 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver |
|---|---|
| Offer Type | standard distance |
| Emission | IR LED 950 nm |
| Maximum Voltage Drop | <0.5 V |
| Output Current Limits | 0.4 A safety outputs OSSD |
| Net Weight | 3.3 kg |
| Function Available | test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults |
| Material | aluminium casing || polycarbonate front panel || polypropylene end caps |
| Kit Composition | adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM |
| Detection System | transmitter-receiver system |
| [Eaa] Effective Aperture Angle | 2.5 ° at 3 m |
| Current Consumption | 42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver |
|---|---|
| Fixing Mode | by fixing brackets |
| Response Time | 23.5 ms |
| Marking | CE |
| Supply | power supply IEC 61496-1 || power supply IEC 60204-1 |
| Local Signalling | 1 multi-colour LED transmitter || 2 dual colour LEDs receiver |
| Housing Colour | red RAL 3000 |
| [Ie] Rated Operational Current | 2 A |
| Output Voltage | 24 V |
| Output Circuit Type | DC |
| [Us] Rated Supply Voltage | 24 V DC +/- 20 % |
Environment
| Product Certifications | cULus || TÜV || CE |
|---|---|
| Shock Resistance | 10 gn 16 ms IEC 61496-1 |
| Vibration Resistance | 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1 |
| Directives | 98/37/EEC - machinery || 89/655/EEC - work equipment || 89/336/EEC - electromagnetic compatibility |
| Service Life | 20 year(s) |
| Safety Reliability Data | PFHd = 3.71E-8 1/h IEC 61508 |
| Ambient Air Temperature For Operation | 14-131 °F || -20-55 °C |
|---|---|
| Environmental Characteristic | resistance to light disturbance EN/IEC 61496-2 |
| Ip Degree Of Protection | IP65 || IP67 |
| Ambient Air Temperature For Storage | -35-70 °C || -13-158 °F |
| Relative Humidity | 0-95 % without condensation |
| Safety Level | type 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1406015EN |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1406015EN |
