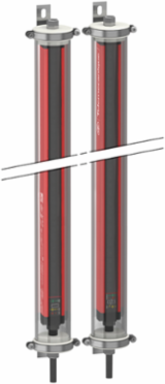

Telemecanique Sensors XUSL4E14F061NWH Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger IP69K with Heating, Std Sensing Range, Hp = 610 mm, R=14 mm
Telemecanique Sensors XUSL4E14F061NWH Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger IP69K with Heating, Std Sensing Range, Hp = 610 mm, R=14 mm
- MPN: XUSL4E14F061NWH
- PPN: TES-XUSL4E14F061NWH
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3265.90/ EA
Description
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Finger IP69K with Heating, Std Sensing Range, Hp = 610 mm, R=14 mm
Specifications
Environment
- Product Certifications
- TÜV || CE || Ecolab || cULus
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/655/EEC - work equipment || 89/336/EEC - electromagnetic compatibility || 98/37/EEC - machinery
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 1.06E-8 1/h IEC 61508
Ambient Air Temperature For Operation-30-55 °C || -13-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP69K
Ambient Air Temperature For Storage-30-70 °C || -13-158 °F
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Maximum Power
- 10 W
- Fixing Mode
- by fixing brackets
- Response Time
- 9 ms
- Marking
- CE
- Supply
- power supply IEC 61496-1 || power supply IEC 60204-1
- Local Signalling
- 1 multi-colour LED transmitter || 2 dual colour LEDs receiver
- Housing Colour
- red RAL 3000
- [Ie] Rated Operational Current
- 2 A
- Type Of Cable
- unshielded cable AWG 22 10-10 m
- Detection System
- transmitter-receiver system
- Ohmic Cable Resistance
- 55.31 mOhm
- [Eaa] Effective Aperture Angle
- 2.5 ° at 3 m
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Offer Typestandard distance
EmissionIR LED 950 nm
Maximum Voltage Drop<0.5 V
Output Current Limits0.4 A safety outputs OSSD
Net Weight4.56 kg
Function Availabletest || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults || anti-condensation system
MaterialPMMA (polymethyl methacrylate) tube || stainless steel AISI 316L sealing plug || PVC (polyvinyl chloride) Cable
Kit Compositionadjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM || silicone o-ring(s) || 1 PVC cable(s)
Output Voltage24 V
Provided Equipmentwith heating system
Output Circuit TypeDC
[Us] Rated Supply Voltage24 V DC +/- 20 %
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Minimum Object Diameter For Detection
- 14 mm
- Control Type
- selected by wiring
- Number Of Beams
- 60
- Device Short Name
- XUSL4E
Product Or Component Typesafety light curtain type 4
Type Of Startautomatic || manual
Height Protected610 mm
Product Specific Applicationfor finger protection
[Sn] Nominal Sensing Distance1-5 m by cabling || 0-2 m by cabling
