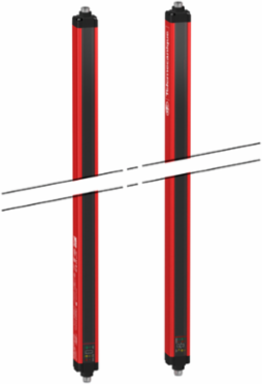

Telemecanique Sensors XUSL4E14F076NS2 Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave2, For finger protection, Hp = 760 mm, R=14 mm
Telemecanique Sensors XUSL4E14F076NS2 Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave2, For finger protection, Hp = 760 mm, R=14 mm
- MPN: XUSL4E14F076NS2
- PPN: TES-XUSL4E14F076NS2
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3384.75/ EA
Specifications
Environment
- Product Certifications
- CE || cULus || TÜV
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/655/EEC - work equipment || 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 1.19E-8 1/h IEC 61508
Ambient Air Temperature For Operation14-131 °F || -20-55 °C
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Ambient Air Temperature For Storage-13-158 °F || -35-70 °C
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406015EN
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Offer Type
- standard distance
- Emission
- IR LED 950 nm
- Topology
- daisy chain slave2
- Output Current Limits
- 0.4 A safety outputs OSSD
- Net Weight
- 1.52 kg
- Function Available
- test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
- Material
- aluminium casing || polycarbonate front panel || polypropylene end caps
- Kit Composition
- adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
- Detection System
- transmitter-receiver system
- [Eaa] Effective Aperture Angle
- 2.5 ° at 3 m
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Maximum Voltage Drop<0.5 V
MarkingCE
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
Housing Colourred RAL 3000
[Ie] Rated Operational Current2 A
Output Voltage24 V
Output Circuit TypeDC
[Us] Rated Supply Voltage24 V DC +/- 20 %
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Minimum Object Diameter For Detection
- 14 mm
- Control Type
- selected by wiring
- Number Of Beams
- 75
- Device Short Name
- XUSL4E
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Height Protected760 mm
Product Specific Applicationfor finger protection
[Sn] Nominal Sensing Distance1-6 m by cabling || 0-3 m by cabling
