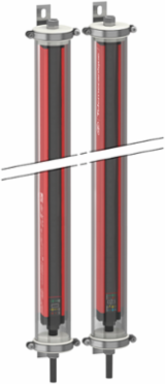

Telemecanique Sensors XUSL4E30H106LWH Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Hand IP69K with Heating, Long Sensing Range, Hp = 1060 mm, R=30 mm

This product is part of the XUSL range, an offer of safety light curtains. This safety light curtain for hand protection. It has 53 beams and height protection of 1060mm. It supports 2 safety outputs OSSD (0.4A) solid-state PNP (arc suppression) with a sensing distance of 0m to 8m or 3m to 17m. The emission technology is IR LED with 950nm wavelength and an effective aperture angle of 25° at 3m. It is an IP69K rated product. It is a safety light curtain with a rated supply voltage of 24V DC and a rated operational current of 2A. It is furnished with 5-pin M12 male connector for transmitter and 8-pin M12 male connector for receiver. The casing is made of aluminium (red) with polycarbonate front panel and polypropylene end caps. Its dimensions are 76mm (Width) x 75mm (Depth) x 1273mm (Height) and weighs 6.06kg. It is ideal for all the dangerous machines with free access requiring a zone protection for the security of operators and machines. This product is certified by CULus, CE, Ecolab and TUV. The set includes receiver, transmitter, adjustable mounting bracket, silicone O-ring, PVC cable and user guide with certificate of conformity on CD-ROM. The transmitter and receiver must be installed with the optical surfaces face to face, connectors oriented in the same way. Perfect alignment of the transmitter and the receiver corresponding beams is mandatory for an optimum functioning. It is an optical protection system with infrared beams that provides protection for operators in the vicinity of hazardous zones. Any moving parts in this zone are stopped if at least one of the light beams is broken. The safety light curtain can only be used on machines on which the movement of working components can be stopped at any time during a hazardous phase. This light curtain provides a stop signal, not a control instruction.
