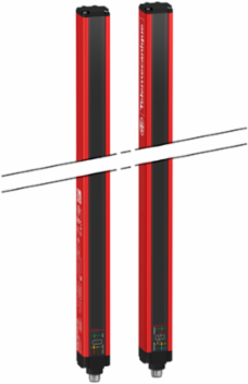

Telemecanique Sensors XUSL4E30H121L Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 1210 mm, R=30 mm

MPN: XUSL4E30H121L
PPN: TES-XUSL4E30H121L
UNSPSC: 46171620

$3549.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 1210 mm, R=30 mm

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Safety light curtains XUSL
Output Type	2 safety outputs OSSD solid-state PNP arc suppression)
Minimum Object Diameter For Detection	30 mm
Control Type	selected by wiring
Number Of Beams	61
Device Short Name	XUSL4E

Product Or Component Type	safety light curtain type 4
Type Of Start	manual \|\| automatic
Height Protected	1210 mm
Product Specific Application	for hand protection
[Sn] Nominal Sensing Distance	3-20 m by cabling \|\| 0-10 m by cabling

Complementary

Electrical Connection	1 male connector M12 5 pins transmitter \|\| 1 male connector M12 8 pins receiver
Offer Type	long distance
Emission	IR LED 950 nm
Maximum Voltage Drop	<0.5 V
Output Current Limits	0.4 A safety outputs OSSD
Net Weight	2.3 kg
Function Available	test \|\| muting through external safety module XPSLCMUT1160 \|\| LED display of operating modes and faults
Material	aluminium casing \|\| polycarbonate front panel \|\| polypropylene end caps
Kit Composition	adjustable mounting bracket(s) \|\| 1 receiver(s) \|\| 1 transmitter(s) \|\| 1 user guide with certificate of conformity on CD-ROM
Detection System	transmitter-receiver system
[Eaa] Effective Aperture Angle	2.5 ° at 3 m

Current Consumption	42 mA no-load transmitter \|\| 83 mA no-load receiver \|\| 42 mA transmitter \|\| 900 mA with maximum load receiver
Fixing Mode	by fixing brackets
Response Time	9.5 ms
Marking	CE
Supply	power supply IEC 61496-1 \|\| power supply IEC 60204-1
Local Signalling	1 multi-colour LED transmitter \|\| 2 dual colour LEDs receiver
Housing Colour	red RAL 3000
[Ie] Rated Operational Current	2 A
Output Voltage	24 V
Output Circuit Type	DC
[Us] Rated Supply Voltage	24 V DC +/- 20 %

Environment

Product Certifications	CE \|\| cULus \|\| TÜV
Shock Resistance	10 gn 16 ms IEC 61496-1
Vibration Resistance	0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
Directives	89/655/EEC - work equipment \|\| 89/336/EEC - electromagnetic compatibility \|\| 98/37/EEC - machinery
Service Life	20 year(s)
Safety Reliability Data	PFHd = 1.54E-8 1/h IEC 61508

Ambient Air Temperature For Operation	-20-55 °C \|\| 14-131 °F
Environmental Characteristic	resistance to light disturbance EN/IEC 61496-2
Ip Degree Of Protection	IP65 \|\| IP67
Ambient Air Temperature For Storage	-35-70 °C \|\| -13-158 °F
Relative Humidity	0-95 % without condensation
Safety Level	type 4 IEC 61496-1 \|\| SIL 3 IEC 61508 \|\| SILCL 3 IEC 62061 \|\| category 4 EN/ISO 13849-1 \|\| PL = e EN/ISO 13849-1

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1406015EN
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Free of Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI1406015EN
