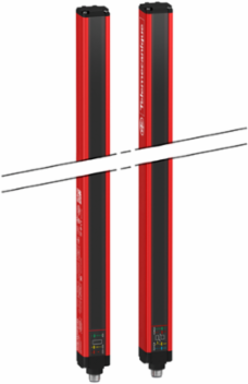

Telemecanique Sensors XUSL4E30H151L Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 1510 mm, R=30 mm
Telemecanique Sensors XUSL4E30H151L Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 1510 mm, R=30 mm
- MPN: XUSL4E30H151L
- PPN: TES-XUSL4E30H151L
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4327.45/ EA
Description
This product is part of the XUSL range, an offer of safety light curtains. This safety light curtain for hand protection. It has 76 beams and height protection of 1510mm. It supports 2 safety outputs OSSD (0.4A) solid-state PNP (arc suppression) with a sensing distance of 0m to 10m or 3m to 20m. The emission technology is IR LED with 950nm wavelength and an effective aperture angle of 25° at 3m. It is an IP65 and IP67 rated product. It is a safety light curtain with a rated supply voltage of 24V DC and a rated operational current of 2A. It is furnished with 5-pin M12 male connector for transmitter and 8-pin M12 male connector for receiver. The casing is made of aluminium (red) with polycarbonate front panel and polypropylene end caps. Its dimensions are 29.4mm (Width) x 31mm (Depth) x 1563mm (Height) and weighs 2.8kg. It is ideal for all the dangerous machines with free access requiring a zone protection for the security of operators and machines. This product is certified by TUV, CULus and CE. The set includes receiver, transmitter, adjustable mounting bracket and user guide with certificate of conformity on CD-ROM. The transmitter and receiver must be installed with the optical surfaces face to face, connectors oriented in the same way. Perfect alignment of the transmitter and the receiver corresponding beams is mandatory for an optimum functioning. It is an optical protection system with infrared beams that provides protection for operators in the vicinity of hazardous zones. Any moving parts in this zone are stopped if at least one of the light beams is broken. The safety light curtain can only be used on machines on which the movement of working components can be stopped at any time during a hazardous phase. This light curtain provides a stop signal, not a control instruction.
Specifications
Environment
- Product Certifications
- TÜV || cULus || CE
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/336/EEC - electromagnetic compatibility || 89/655/EEC - work equipment || 98/37/EEC - machinery
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 1.78E-8 1/h IEC 61508
Ambient Air Temperature For Operation-20-55 °C || 14-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Ambient Air Temperature For Storage-35-70 °C || -13-158 °F
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406015EN
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Offer Type
- long distance
- Emission
- IR LED 950 nm
- Maximum Voltage Drop
- <0.5 V
- Output Current Limits
- 0.4 A safety outputs OSSD
- Net Weight
- 2.8 kg
- Function Available
- test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
- Material
- aluminium casing || polycarbonate front panel || polypropylene end caps
- Kit Composition
- adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
- Detection System
- transmitter-receiver system
- [Eaa] Effective Aperture Angle
- 2.5 ° at 3 m
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Response Time11 ms
MarkingCE
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
Housing Colourred RAL 3000
[Ie] Rated Operational Current2 A
Output Voltage24 V
Output Circuit TypeDC
[Us] Rated Supply Voltage24 V DC +/- 20 %
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Minimum Object Diameter For Detection
- 30 mm
- Control Type
- selected by wiring
- Number Of Beams
- 76
- Device Short Name
- XUSL4E
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Height Protected1510 mm
Product Specific Applicationfor hand protection
[Sn] Nominal Sensing Distance3-20 m by cabling || 0-10 m by cabling
