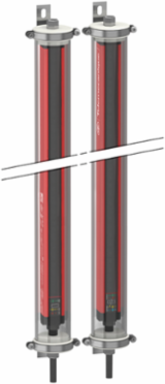

Telemecanique Sensors XUSL4E30H091LWC Safety light curtain, type 4, hand protection, R30, protected height 910 mm, sensing range 8–17 m, IP69K without heating
- MPN: XUSL4E30H091LWC
- PPN: TES-XUSL4E30H091LWC
CAD
$3388.82
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety light curtain, type 4, hand protection, R30, protected height 910 mm, sensing range 8–17 m, IP69K without heating
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Detection system | Transmitter-receiver system |
|---|---|
| Kit composition | adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM, silicone o-ring(s), 1 PVC cable(s) |
| Rated supply voltage (Us) | 24 V DC +/- 20 % |
| Current consumption | 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver |
| Output circuit type | DC |
| Local signalling | 1 multi-colour LED transmitter, 2 dual colour LEDs receiver |
| Type of cable | Unshielded cable AWG 22 10-10 m |
| Marking | CE |
| Housing colour | Red RAL 3000 |
| Offer type | Long distance |
| Response time | 12.5 ms |
|---|---|
| Emission | IR LED 950 nm |
| Supply | Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1 |
| Output voltage | 24 V |
| Voltage drop | <0.5 V |
| Electrical connection | 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver |
| Function available | Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults, anti-condensation system |
| Material | PMMA (polymethyl methacrylate): tube, stainless steel AISI 316L: sealing plug, PVC (polyvinyl chloride): cable |
| Fixing mode | By fixing brackets |
| Provided equipment | Without heating system |
Environment
| Directives | 89/336/EEC - electromagnetic compatibility 89/655/EEC - work equipment 98/37/EEC - machinery |
|---|---|
| Safety level | Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to ISO 13849-1, PL = e conforming to ISO 13849-1 |
| Safety reliability data | PFHd = 1.30E-8 1/h conforming to IEC 61508 |
| Shock resistance | 10 gn for 16 ms conforming to IEC 61496-1 |
| Product certifications | CE cULus Ecolab TÜV |
|---|---|
| Environmental characteristic | Resistance to light disturbance conforming to IEC 61496-2 |
| IP degree of protection | IP69K |
| Vibration resistance | 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
Main
| Range of product | Telemecanique Safety light curtains XUSL |
|---|---|
| Device short name | XUSL4E |
| Product specific application | For hand protection |
| Control type | Selected by wiring |
| Product or component type | Safety light curtain type 4 |
|---|---|
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Type of start | Automatic manual |
