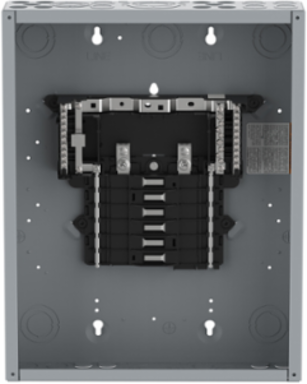

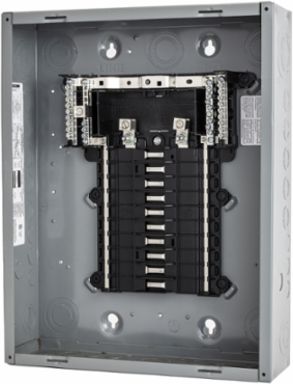

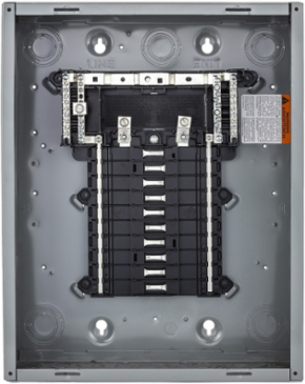

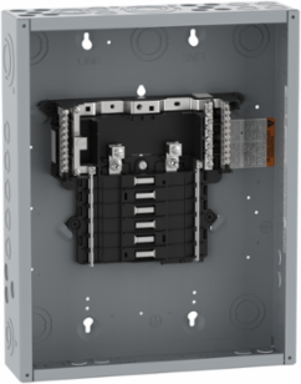

Square D QO112L125PG Load center, QO, 1 phase, 12 spaces, 12 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar
Square D QO112L125PG Load center, QO, 1 phase, 12 spaces, 12 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar
- MPN: QO112L125PG
- UPC: 785901588382
- PPN: SCH-QO112L125PG
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$460.75/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 12 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
Specifications
Complementary Attributes
- Line Rated Current
- 125 A
Rated Current125 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Or Component Type
- Load Center
- Carbon Footprint Of The Distribution Phase A4
- 1.7327865084, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0207441312, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-04-06
- Stocking Flag
- Y
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Load centers (equipped)
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Device Composition
- grounding bar included (not installed)
- Load Center Type
- PoN Convertible Mains (lugs)
- Number Of Spaces
- 12
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
- Short Circuit Current
- 65 kA
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Tlaxcala Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Offer Owner Code
- 190788

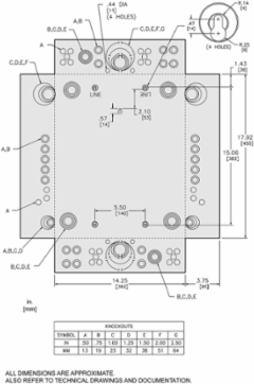

- Height Nominal
- 455 mm
- Certificate Agency
- UL Listed
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1.0634
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1.1758
- Water Pollution (M3) Operational Energy Use [B6]
- 4.3059
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Tightening TorqueCover 20 lb.in
Carbon Footprint Of The End Of Life Phase C1 To C40.5 kg CO2 eq., 0.4789176015
Carbon Footprint Of The Manufacturing Phase A1 To A326 kg CO2 eq., 25.6428069956
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
H And D SubrangeRESI
H And D Enrichment FunctionENCLOSURES
H And D Enrichment Class 4single-phase main lug only indoor load center
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Box Number6
Energy Efficiency OptimizedFalse
Number Of Circuits24
Number Of Tandem Circuit Breakers12
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Pep CodeENVPEP2212003EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Pn1
Width Nominal362 mm
Air Pollution (M3) Operational Energy Use [B6]7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.1052
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1.1052
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 27.9625962367
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2212003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Load Center
- Range Of Product
- QO
Phase1 phase 3 wires
Specifications
- Country of Origin
- Mexico, United States
Depth95 mm
