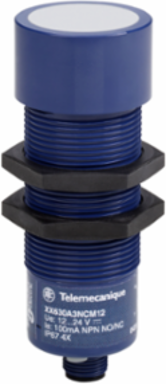

Telemecanique Sensors XX2V3A1PFM12 Ultrasonic sensors XX, ultrasonic dual level sensor 2 NO 4 wires m30
- MPN: XX2V3A1PFM12
- PPN: TES-XX2V3A1PFM12
CAD
$359.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic sensors XX, ultrasonic dual level sensor 2 NO 4 wires m30
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
|---|---|
| Discrete Output Function | 2 NO |
| Range Of Product | Telemecanique Ultrasonic sensors XX |
| [Sd] Sensing Range | 0.3-8 m |
| Wiring Technique | 4-wire |
| Series Name | general purpose |
| Detection System | diffuse |
| Sensor Type | ultrasonic sensor |
| Sensor Design | cylindrical M30 |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Sensor Name | XX2 |
| Material | plastic |
| Ip Degree Of Protection | IP67 conforming to IEC 60529 |
| Beam Angle | 16 ° |
| Product Specific Application | for 2 levels monitoring |
| Electrical Connection | male connector M12 4 pins |
| [Sn] Nominal Sensing Distance | 8-8 m adjustable with teach push-button |
Complementary
| Repeat Accuracy | 2.54 % |
|---|---|
| Maximum Switching Current | 100 mA overload and short-circuit protection |
| Maximum Delay Response | 150 ms |
| Status Led | output state 1 LED green/red (flashing)) || setting-up assistance 1 LED green/red (flashing)) || distance indication 1 LED yellow) |
| [Sa] Assured Operating Distance | 0.3-8 m teach mode) |
| Marking | CE |
| Net Weight | 0.11 kg |
| Maximum Differential Travel | 12.7 mm |
| Thread Type | M30 x 1.5 |
| Maximum Delay Recovery | 1000 ms |
| Supply Voltage Limits | 10-28 V DC |
| Width | 44 mm |
| Depth | 118 mm |
| Height | 44 mm |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 50.8 mm 4.732 m |
| Maximum Voltage Drop | 1 V |
| Transmission Frequency | 75 kHz |
| Threaded Length | 64.3 mm |
| Blind Zone | 0-300 mm |
| Current Consumption | 100 mA |
| Deviation Angle From 90° Of Object To Be Detected | -5-5 ° |
| Function Available | without synchronisation mode |
| Maximum Delay First Up | 1000 ms |
| Enclosure Material | ULTEM |
| Front Material | silicone |
Environment
| Product Certifications | UL || cCSAus |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -10-80 °C |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
| Ambient Air Temperature For Operation | -20-60 °C |
|---|---|
| Standards | IEC 60947-5-2 |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Electrostatic Discharge | 8 kV level 4 IEC 61000-4-2 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111234EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111225EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
