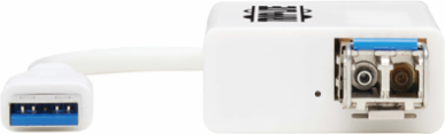

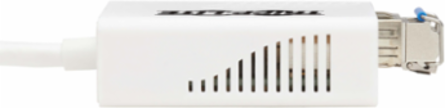

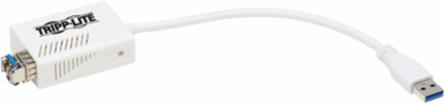

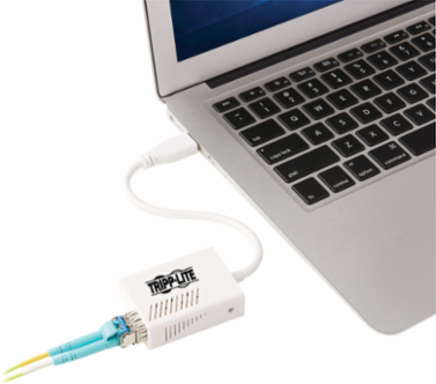

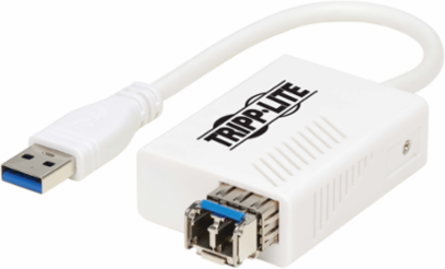

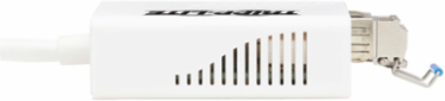

Tripp Lite U336-MMF-1G-LC USB 3.0 Multimode Fiber Optic Transceiver Adapter, 1 Gbps, 550m, LC
- MPN: U336-MMF-1G-LC
- UPC: 037332225993
- PPN: TRP-U336-MMF-1G-LC
CAD
$343.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB 3.0 Multimode Fiber Optic Transceiver Adapter, 1 Gbps, 550m, LC
Features
- Connects you to a wired Gigabit Ethernet network when Wi-Fi is weak or unavailable
- Provides 1 Gbps throughput up to 550 m (1804 ft.) via multimode fiber cabling for fast Ethernet browsing
- Supports USB 3.0 speeds up to 5 Gbps to ensure efficient data transfers
- USB 3.0 Fiber Transceiver Ethernet adapter powered via USB, so no external power supply is required
- Works with most laptops and PCs running Windows, Mac or Linux
- 3-year limited warranty
- Connects Your Laptop or PC to a Wired Fiber Network without an Internet Card Installed
- Hot-Swappable for Installation Without Network Interruption
- Delivers Full Gigabit Ethernet Performance with Audio and Video Streaming
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| Remote Wakeup Support | Yes |
| Wavelength | 1310nm |
| Transmission Distance | 550m |
| Driver Required | Yes |
|---|---|
| Technology | USB; USB 3.0 (SuperSpeed) |
| Optical Port | LC |
| Mode Type | Multimode |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | ABS, PVC |
| Unit Packaging Type | Box |
| Color | White |
|---|---|
| Unit Dimensions (hwd / in.) | 0.71 x 2.2 x 1.61 |
| Unit Weight (lbs.) | 0.12 |
User Interface, Alerts & Controls
| LED Indicators | Blue (Power/Data) |
|---|
Input
| Built-In Cable Length (m) | 0.155 |
|---|---|
| Bus Powered | Yes |
| Built-In Cable Length (in.) | 6.1 |
|---|
Communications
| Network Speed | 1Gbps |
|---|
Environmental
| Operating Temperature Range | 32 to 131°F (0 to 55°C) |
|---|---|
| Relative Humidity | 5% to 90 % RH, Non-Condensing |
| Storage Temperature Range | 32 to 140°F (0 to 60°C) |
|---|
Overview
| UPC Code | 037332225993 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
