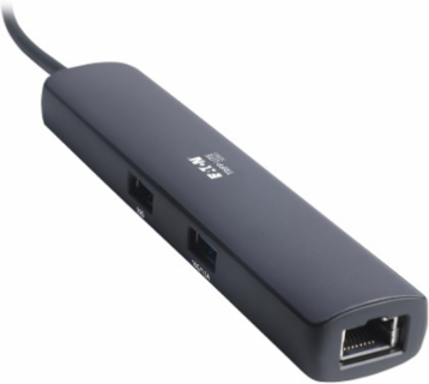

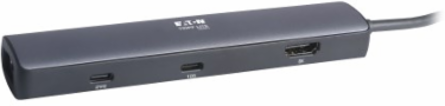

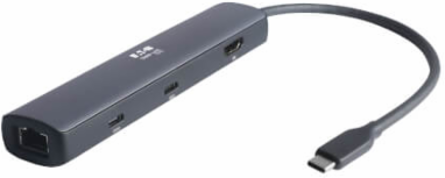

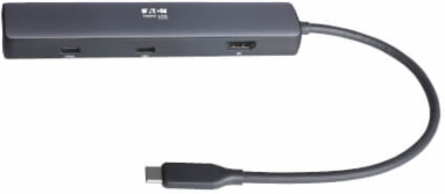

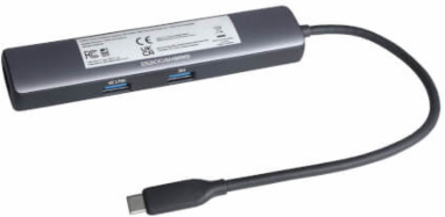

Tripp Lite U442DOCK406 USB-C Mini Dock, 8K/4K144Hz HDMI, USB 3.2 Gen 2 (10Gbps) Hub, GbE, 100W PD Charging, HDCP 2.3, Gray
- MPN: U442DOCK406
- UPC: 037332282798
- PPN: TRP-U442-DOCK40-6
CAD
$134.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Mini Dock and Multiport Adapter - 8K or 4K/144 Hz HDMI, USB 3.x Gen 2 (10Gbps) Hub Ports, Gigabit Ethernet, 100W PD Charging, HDR, HDCP 2.3
Features
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB-C (Male) |
|---|---|
| Data Ports | (2) USB-A, USB 3.2 Gen 2 (10 Gbps); (1) USB-C, USB 3.2 Gen 2 (10 Gbps) (Female) |
| Input Cord Length | 0.66 |
| Charging Port Types | (2) USB-A (Female), (2) USB-C (Female) |
| Wire Gauge | 34+24 |
| Unit Dimensions | 0.710 x 1.210 x 5.590 |
| Number of USB Hub Ports | 3 |
| Output Connector | HDMI (Female) |
|---|---|
| Network Port | RJ45 (Female) |
| Number of Ports | 6 |
| Cable Outer Diameter | 5.0mm |
| Cable Length | 7.87 |
| Unit Weight | 0.201 |
Material
| Connector Plating | Nickel |
|---|---|
| Material | TPE+PVC+ABS |
| Cable Jacket Material | TPE |
| Color | Gray |
|---|---|
| Cable Jacket Color | Black |
Compliance
| Cable Flame Rating | FT2 |
|---|---|
| Compliance Standards | CE (Europe), FCC Part 15 Class B (USA), REACH, RoHS3, UKCA, WEEE |
| Certifications | EN 55032, ICES (Canada), NOM (Mexico) |
|---|
Reference
| Product Type | USB Multiport Dock, Multiport Adapter |
|---|
| Warranty | 1-year limited warranty |
|---|
Performance
| Device Compatibility | Chromebook, Computer, DVR, Laptop, Monitor/HDTV, Phone, Projector, Tablet, Smartphone |
|---|---|
| Number of Monitors Supported | 1 |
| Max Supported Color Depth | 36-bit Deep Color |
| Network Speed | 1 Gbps (Gigabit) |
| Number of Charging Ports | 4 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| USB Standard | USB 3.2 Gen 2 (up to 10 Gbps) |
| Driver Required | No |
| Supported Technologies | Cat5/5e, Cat6, HDMI, Thunderbolt, USB 3.x |
|---|---|
| Extended Mode | Yes — extends a USB-C DisplayPort Alt Mode signal up to 8K/30 Hz or 4K/144 Hz |
| Chroma Sub Sampling | 4:2:2, 4:4:0, 4:4:4 |
| Power Source Type | Bus, USB |
| Total Charging Watts | 100 (includes 2.4A USB hub budget) |
| Storage Temperature Range | 50° to 158°F (-10° to 70°C) |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
| Data Transfer Rate | 1 Gbps, 10 Gbps, 10 Mbps, 100 Mbps |
| TAA Compliant Option | No |
