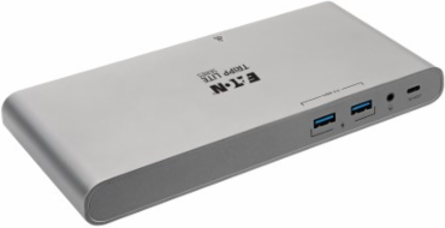

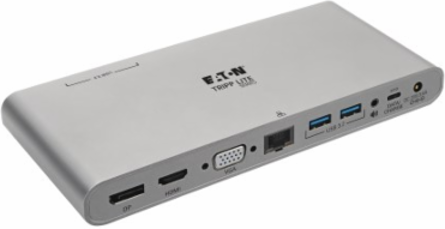

Tripp Lite U442DOCK4INT USB-C Dock, Triple Display, 4K HDMI/DP, VGA, USB 3.x (5Gbps) Hub, GbE, 100W PD Charging, EU/UK
- MPN: U442DOCK4INT
- UPC: 037332273062
- PPN: TRP-U442-DOCK4-INT
CAD
$324.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

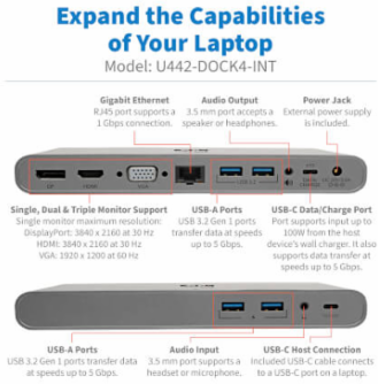

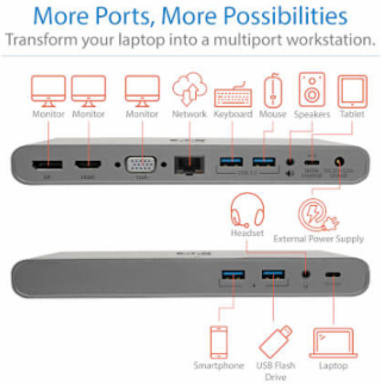

USB-C Dock, Triple Display - 4K HDMI/DisplayPort, VGA, USB 3.x (5Gbps), USB-A/C Hub Ports, GbE, 100W PD Charging, EU/UK Power Supply

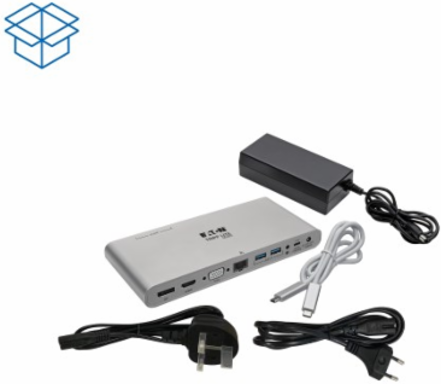

Features
- USB-C cable (M/M), 2.6 ft. (0.8 m)
- External power supply (Input: 100-240V, 50/60 Hz, 1.8A; Output: 20V 3.6A)

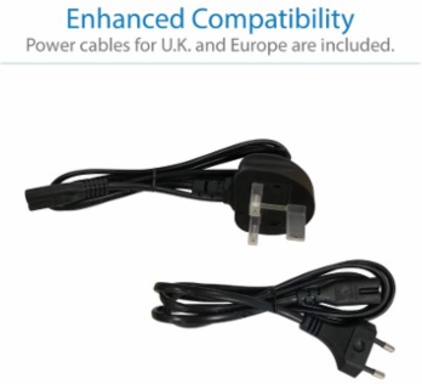

- (2) International power cables (Europe, U.K.), 1.2m (4-ft.)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Host Connector | USB-C (Female) |
|---|---|
| Data Ports | (4) USB-A, USB 3.2 Gen 1 (5 Gbps); (1) USB-C, USB 3.2 Gen 1 (5 Gbps) (Female) |
| AC Adapter Plug Type | BS 1363 UK, CEE 7/16 Schuko |
| Input Cord Gauge | 32 |
| Number of Ports | 12 |
| Cable Outer Diameter | 4.5mm |

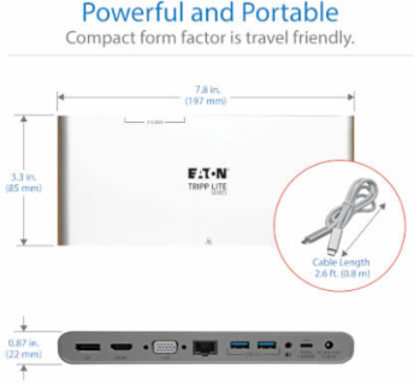

| Unit Dimensions | 0.870 x 7.800 x 3.300 |
| Number of USB Hub Ports | 5 |
| Audio Ports | (2) 3.5mm (Female) |
|---|---|
| Network Port | RJ45 (Female) |
| AC Power Adapter Cord Length | 3.94 |
| DC Barrel Plug | OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve |
| Charging Port Types | (4) USB-A (Female), (1) USB-C (Female) |
| Cable Length | 2.62 |
| Unit Weight | 0.94 |
Material
| Connector Plating | Nickel |
|---|---|
| Material | Aluminum, PVC |
| Cable Jacket Material | PVC |
| Color | Silver |
|---|---|
| Cable Jacket Color | White |
Compliance
| Cable Flame Rating | VW-1 |
|---|---|
| Compliance Standards | CE (Europe), FCC Part 15 Class B (USA), REACH, RoHS3, UKCA, WEEE |
| Certifications | ICES (Canada), NOM (Mexico) |
|---|
Reference
| Product Type | Docking Station |
|---|
| Warranty | 3-year limited warranty |
|---|
Performance
| Supported Technologies | Cat5/5e, Cat6, DisplayPort, HDMI, Stereo Audio, USB 3.x, VGA/SVGA |
|---|---|
| AC Power Adapter Input | 100-240V / 50/60Hz / 1.8A |
| Voltage Compatibility | 100, 110, 120, 125, 127, 200, 208, 220, 230, 240 |
| Power Source Type | AC Adapter with detachable power cord |
| LED Indicators | Green (Power), Orange (Transmitting Data) |
| Total Charging Watts | 100 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 90% RH, Non-Condensing |
| IEEE Standards Supported | 802.3, 802.3u, 802.3az, 802.3x |
| TAA Compliant Option | No |

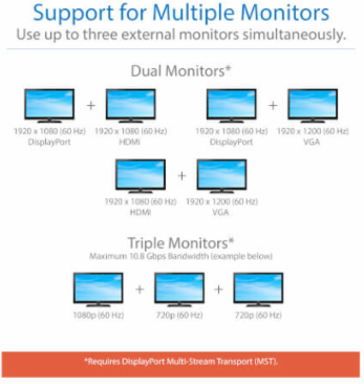

| Number of Monitors Supported | 3 |
|---|---|
| AC Power Adapter Output | 20V / 3.6A |
| Battery Charging | Yes |
| Power Consumption | 10.00 |
| Number of Charging Ports | 4 |
| Device Compatibility | Chromebook, Laptop, Portable Speaker, Smartphone, Tablet |
| Storage Temperature Range | 14° to 158°F (-10° to 70°C) |
| Storage Humidity Range | 10% to 90% RH, Non-Condensing |
| Overvoltage Protection | No |
