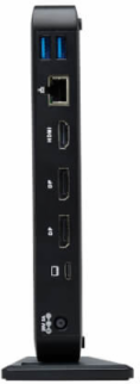

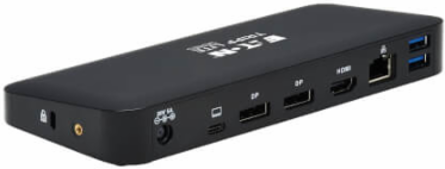

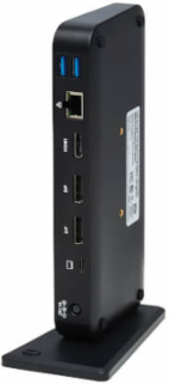

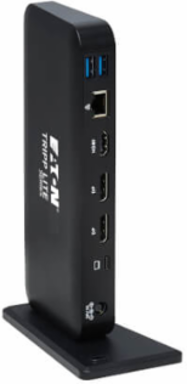

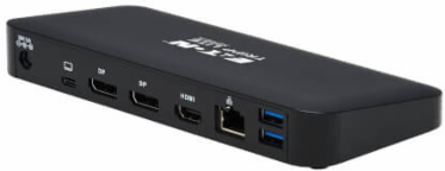

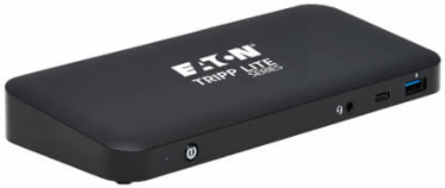

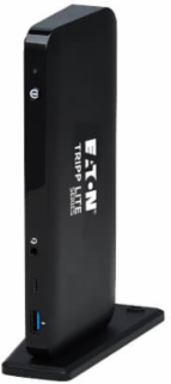

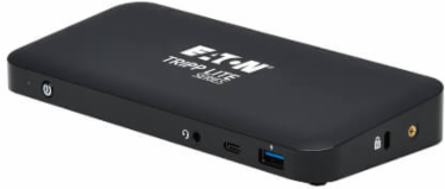

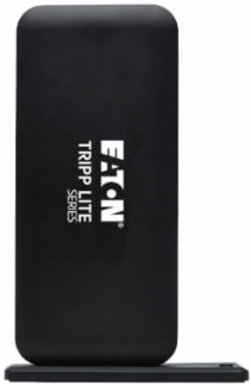

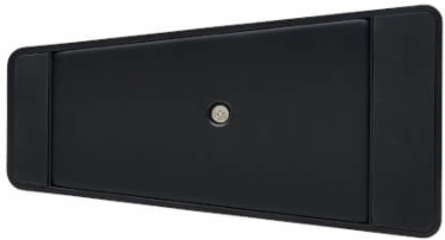

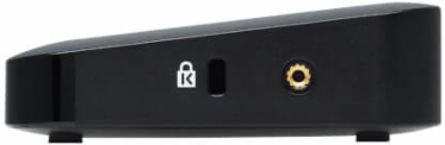

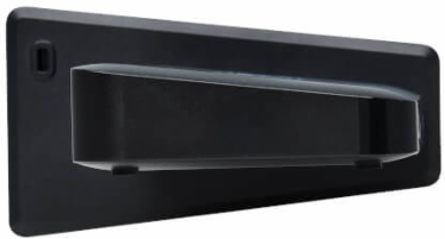

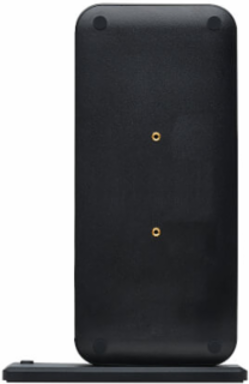

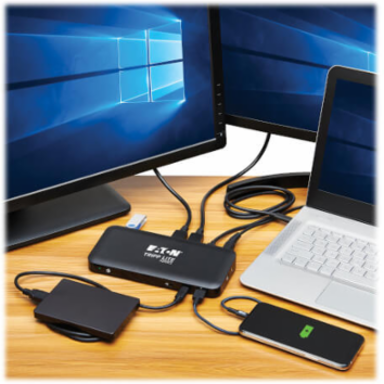

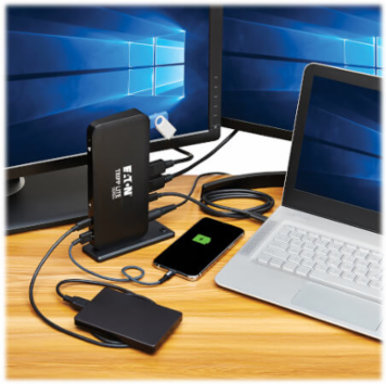

Tripp Lite U442DOCK8B USB-C Dock, Triple Display, 4K 60 Hz HDMI/DP, USB 3.2 Gen 2 (10Gbps) Hub, GbE, 85W PD, Black
- MPN: U442DOCK8B
- UPC: 037332265975
- PPN: TRP-U442-DOCK8-B
CAD
$443.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
USB-C Dock, Triple Display - 4K 60 Hz HDMI/DisplayPort, USB 3.x Gen 2 (10Gbps), USB-A/USB-C Hub, GbE, 85W PD Charging, Black
Features
- USB-C to USB-C cable, 3.3 ft
- External power supply (Input: 100-240V, 50/60 Hz, 2A; Output: 20V 5A)
- C5 to NEMA 5-15P Adapter, 6 ft
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- Host Connector
- USB-C (Male)
- Data Ports
- (3) USB-A (Female) — described as (2) USB-A, USB 3.2 Gen 2 (10 Gbps); (1) USB-C, USB 3.2 Gen 2 (10 Gbps) (Female)
- AC Adapter Plug Type
- NEMA 5-15P (North America)
- DC Barrel Plug
- OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
- Charging Port Types
- (2) USB-A (Female), (2) USB-C (Female)
- Unit Weight
- 0.55
Audio Port3.5mm (Female)
Network PortRJ45 (Female)
AC Power Adapter Cord Length5.9
Number of Ports10
Unit Dimensions3.400 x 7.500 x 1.100
Material
- Color
- Black
MaterialPolycarbonate, ABS
Compliance
- Compliance Standards
- RoHS, REACH, FCC (USA)
Reference
- Product Type
- Docking Station
Warranty3-year limited warranty
Performance
- Device Compatibility
- Chromebook, Computer, DVR, Laptop, Monitor/HDTV, Phone, Projector, Tablet, Smartphone
- Number of Monitors Supported
- 3
- Audio Support
- 3.5mm combo stereo audio/microphone jack
- AC Power Adapter Output
- 20V / 5A
- Power Source Type
- AC Adapter with detachable power cord
- LED Indicators
- Power (Blue); RJ45 Port: Green (Connection) / Orange (Activity)
- Total Charging Watts
- 85
- Storage Temperature Range
- -4° to 158°F (-20° to 70°C)
- Storage Humidity Range
- 0% to 90% RH, Non-Condensing
- USB Standard
- USB 3.2 Gen 2 (up to 10 Gbps)
Supported TechnologiesCat5/5e, Cat6, DisplayPort, HDMI, Thunderbolt, USB 3.x, Stereo Audio
Extended ModeYes
AC Power Adapter Input100-240V / 50/60Hz / 2A
Voltage Compatibility100, 110, 120, 125, 127, 200, 208, 220, 230, 240
Power Consumption15.00
Number of Charging Ports4
Operating Temperature Range32° to 104°F (0° to 40°C)
Operating Humidity Range0% to 90% RH, Non-Condensing
Quick Charge CompliantNo
TAA Compliant OptionNo
