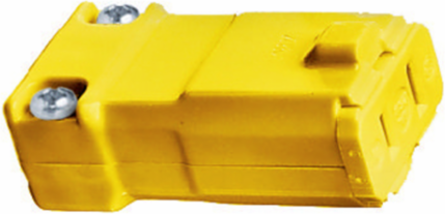

Hubbell Wiring Device-Kellems HBL5869VY Valise Series Connector Body, 15A, 125V, 2-Pole, Yellow
- MPN: HBL5869VY
- UPC: 783585013237
- PPN: HBL-HBL5869VY
- UNSPSC: 39121421
CAD
$21.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2- Wire Non-Grounding, 15A 125V, 1-15R, Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.38 in x 1.25 in x 0.88 in
- Industry Standard(s)
- CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Molded Rating on Device Face;Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Color
- Yellow
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 1-15R
- Number of Poles
- 2-Pole
- Special Features
- Standard Product
- Temperature Rating
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Voltage Rating
- 125 V
- Weight
- 0.05 lb.
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Screw Terminals
- Display Size
- Standard
- Number Of Conductors
- 2-Wire Non-Grounding
- Number Of Wires
- 2-Wire
- Style
- Standard
- Wire Size
- #18 AWG to #14 AWG
- Description - Invoice
- VALISE CONN, 15A 125V, 1-15R, YL
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A050
- Material - Mounting Hardware
- Cord Mounted
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 6.250 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height0.88 in
Length2.38 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial/Commercial
Conductor Range#14 AWG to #12 AWG
InsulationInsulated Body
Number of Conductors2-Wire Non-Grounding
Size2.38 in x 1.25 in x 0.88 in
StandardCSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
TypeConnector Body
Voltage Rating Description125 V
Width1.25 in
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Dielectric StrengthWithstands 2,000V minimum
Nema Rating1-15R
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wattage1875 W
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5869VY;5869VYCN;HBL5869VYCN
Cord Range0.218-0.385" (5.5-9.8)
Current Rating15 A
SeriesValise®
BOX SIZE3.300x8.400x3.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585013237
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A102
