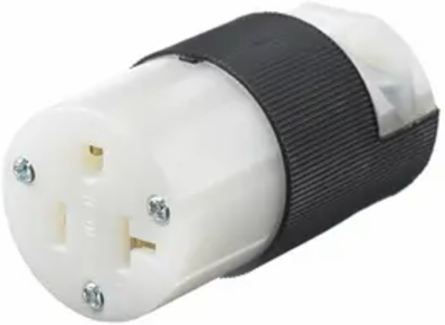

Hubbell Wiring Device-Kellems HBL5369C Insulgrip Heavy Duty Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding
Hubbell Wiring Device-Kellems HBL5369C Insulgrip Heavy Duty Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding
- MPN: HBL5369C
- UPC: 783585174259
- PPN: HBL-HBL5369C
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$112.14/ EA
Description
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White, Single Pack.
Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL5369C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Dimensions
- 2.78 in x 1.41 in x 1.53 in
- Horsepower - Maximum
- 1.00
- Length
- 2.78 in
- Standards - RoHS Compliance Status
- CM
- Application
- Industrial/Commercial Grade
- Conductor Range
- #18 AWG to #10 AWG
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Standard
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Type
- Connector Body
- Voltage Rating Description
- 125 V
- Width
- 1.41 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Wire Size
- #18 AWG to #10 AWG
- Description - Invoice
- CONN, 20A 125V, 5-20R, B/W
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material - Mounting Hardware
- Cord Mounted
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 22.050 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextFood Processing Guide
Current / Amperage Rating20 A
Height1.53 in
Industry Standard(s)CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorNoir, blanc
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating5-20R
Size2.78 in x 1.41 in x 1.53 in
Temperature RatingMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating125 VAC
Weight0.15 lb.
ConnectivityScrew Terminals
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStandard
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5369C
Cord Range0.250"-0.655" (6.4-16.6)
Current Rating20 A
SeriesInsulgrip®
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585174259
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet Height39.200 in
Pallet Weight900.000 lb.
Certifications
- EU RoHS Indicator
- Yes
