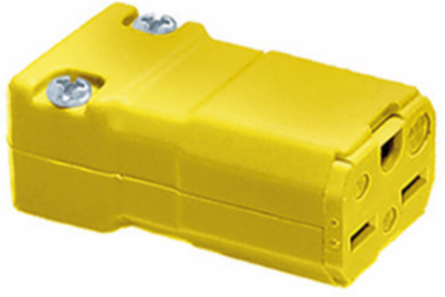

Hubbell Wiring Device-Kellems HBL5669VY Valise Series Female Connector Body, 15A 250V, 2-Pole 3-Wire Grounding
- MPN: HBL5669VY
- UPC: 783585013213
- PPN: HBL-HBL5669VY
- UNSPSC: 39121421
CAD
$66.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 250V, 6-15R, Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.38 in x 1.25 in x 0.88 in
- Industry Standard(s)
- CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Conductor Range
- #14 AWG to #12 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 3-Wire Grounding
- Size
- 2.38 in x 1.25 in x 0.88 in
- Standard
- CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Type
- Connector Body
- Voltage Rating Description
- 250 V
- Width
- 1.25 in
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 6-15R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 3750 W
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5669VY;5669VYCN;HBL5567EY;HBL5669VYCN
- Cord Range
- 0.220"-0.660" (5.6-16.8)
- Current Rating
- 15 A
- Series
- Valise®
- BOX SIZE
- 3.200x8.400x3.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585013213
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height0.88 in
Length2.38 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial/Commercial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating6-15R
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMax Continuous- 75 Degrees C, Minimum- -40 Without Impact
Voltage Rating250 V
Weight0.15 lb.
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivityScrew Terminals
Display SizeStandard
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleStandard
Wire Size#18 AWG to #12 AWG
Description - InvoiceVALISE CONN, 15A 250V, 6-20R, VY
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA04A050
Material - Mounting HardwareCord Mounted
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight8.350 lb.
Lowest Level UOMEach
