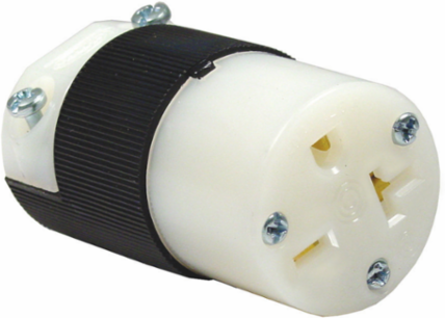

Hubbell Wiring Device-Kellems HBL5469C Insulgrip Female Connector Body, 20A 250V, 2-Pole 3-Wire Grounding
- MPN: HBL5469C
- UPC: 783585174853
- PPN: HBL-HBL5469C
- UNSPSC: 39121421
CAD
$116.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 20A 250V, 6-20R, Black and White, Single Pack.
Features
- Individual wiring terminals completely enclosed
- Powerful, offsetting cord grips clamp on individual conductors
- Fast lead assembly screws
- Beveled housing prevents snagging
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL5469C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Dimensions
- 2.78 in x 1.53 in x 1.53 in
- Industry Standard(s)
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-10 AWG copper conductors only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 20 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 6-20R
- Number of Poles
- 2-Pole
- Special Features
- Standard Product
- Temperature Rating
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Voltage Rating
- 250 V
- Weight
- 0.2 lb.
- Connectivity
- Screw Terminals
- Display Size
- Standard
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Style
- Standard
- Wire Size
- #18 AWG to #10 AWG
- Description - Invoice
- CONN, 20A 250V, 6-20R, B/W
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material - Mounting Hardware
- Cord Mounted
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 11.351 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 38.800 in
- Pallet Weight
- 811.800 lb.
- NAICS Code
- 335931A102
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating20 A
Height1.53 in
Length2.78 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial/Commercial
Conductor Range#14 AWG to #12 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Size2.78 in x 1.53 in x 1.53 in
StandardCSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
TypeConnector Body
Voltage Rating Description250 V
Width1.53 in
Dielectric StrengthWithstands 2,000V minimum
Nema Rating6-20R
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wattage5000 W
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number5469C
Cord Range0.230"-0.720" (5.8-18.3)
Current Rating20 A
SeriesInsulgrip®
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585174853
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585174852
Pallet Length48.000 in
Pallet Width40.000 in
