Description

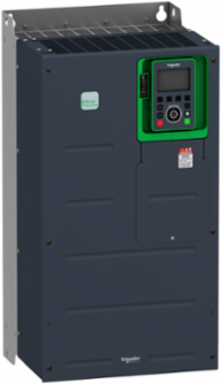

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 90kW/125HP (500V supply voltage) for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 75kW/100HP (500V supply voltage) for applications requiring significant overload (up to 150%). Its dimensions are 331mm (width) x 297mm (depth) x 630mm (height). It weighs 53kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Specifications
Specifications
Prospective Line Isc
70 kA
Line Current
108.3 A 500 V normal duty) || 99.4 A 690 V normal duty) || 82.7 A 500 V heavy duty) || 87.7 A 690 V heavy duty)
Asynchronous Motor Control Profile
variable torque standard || optimized torque mode || constant torque standard
Product Or Component Type
variable speed drive
Switching Frequency
1...4.9 kHz adjustable || 2.5...4.9 kHz with derating factor
Product Specific Application
process and utilities
Motor Power Hp
100 hp 500 V normal duty || 75 hp 500 V heavy duty || 125 hp 690 V normal duty || 100 hp 690 V heavy duty
Option Card
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink
Speed Drive Output Frequency
0.1-500 Hz
Motor Power Kw
75 kW 500 V normal duty) || 55 kW 500 V heavy duty) || 90 kW 690 V normal duty) || 75 kW 690 V heavy duty)
[Us] Rated Supply Voltage
500...690 V - 15...10 %
Type Of Cooling
forced convection
Nominal Switching Frequency
2.5 kHz
Synchronous Motor Control Profile
permanent magnet motor || synchronous reluctance motor
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
Exchange Mode
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Net Weight
53 kg
Frequency Resolution
display unit 0.1 Hz || analog input 0.012/50 Hz
Maximum Transient Current
124.5 A 60 s heavy duty) || 118.8 A 60 s normal duty)
Motor Slip Compensation
automatic whatever the load || can be suppressed || not available in permanent magnet motor law || adjustable
Method Of Access
slave Modbus TCP
Local Signalling
local diagnostic 3 LEDs || embedded communication status 3 LEDs dual colour) || communication module status 4 LEDs dual colour) || presence of voltage 1 LED red)
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Electrical Connection
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 50 mm² AWG 1 || line side screw terminal 50 mm² AWG 1
Height
630 mm
Transmission Frame
RTU
Data Format
8 bits, configurable odd, even or no parity
Connector Type
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Permissible Temporary Current Boost
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Analogue Output Number
2
Minimum Switching Current
relay output R1, R2, R3 5 mA 24 V DC
Enclosure Mounting
wall mounted
Output Voltage
<= power supply voltage
Braking To Standstill
by DC injection
Protection Type
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Maximum Switching Currentrelay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Width331 mm
Depth297 mm
Sampling Duration2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Maximum Output Frequency500 kHz
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s || S, U or customized
Relay Output Number3
Accuracy+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolationbetween power and control terminals
Quantity Per Set1
Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Supplyexternal supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
