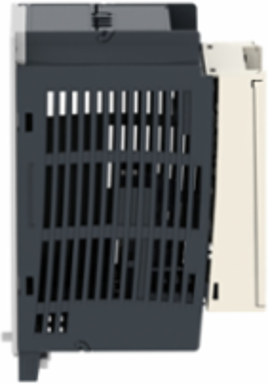

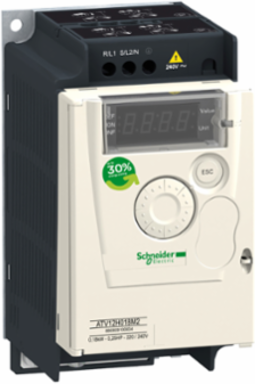

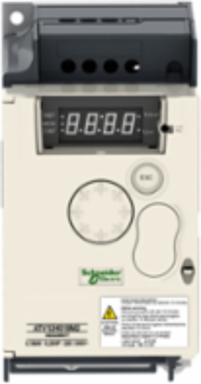

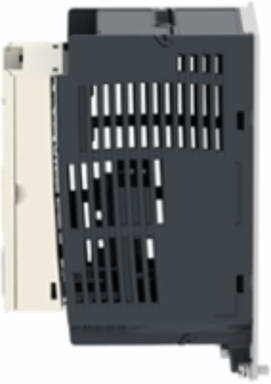

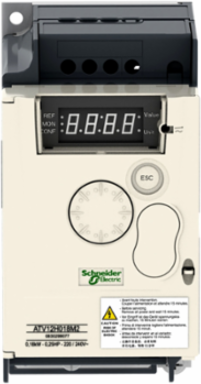

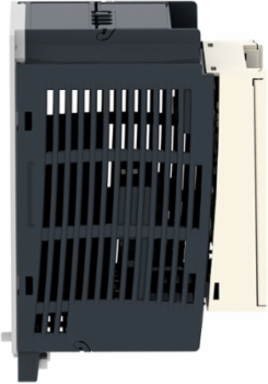

Schneider Electric ATV12H037M2 Variable Speed Drive 0.37 kW 0.55 hp 200-240V 1 Phase with Heat Sink

  • MPN: ATV12H037M2
  • PPN: SCH-ATV12H037M2
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $357.20

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States
    Depth121.2 mm

    Communications & Management Attributes

    Communication Service
    read holding registers (03) 29 words, write single register (06) 29 words, write multiple registers (16) 27 words, read/write multiple registers (23) 4/4 words, read device identification (43)
    Communication Port ProtocolModbus

    Complementary Attributes

    Maximum Transient Current
    3.6 A 60 s heavy duty), 4.0 A 2 s heavy duty)
    Maximum Associated Fuse Rating
    12.5 A
    Maximum Input Current Per Phase
    4.9 A
    Maximum Output Voltage
    240 V
    Brake Chopper Integratedfalse
    Maximum Horse Power Rating0.55 hp
    Maximum Output Frequency4 kHz

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
    Market Segmentation
    Commercial, Industrial
    Electromagnetic Compatibility
    electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, immunity to conducted disturbances level 3 conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, surge immunity test level 3 conforming to IEC 61000-4-5, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Frequency Resolution
    analog input converter A/D, 10 bits, display unit 0.1 Hz
    Linearity Error
    +/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input
    Protection Type
    line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    Vibration Resistance
    1 gn 13-200 Hz)IEC 60068-2-6, 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    [Us] Rated Supply Voltage
    200...240 V, 200...240 V - 15...10 %
    Environmental Class (During Storage)
    class 1C3 according to IEC 60721-3-1, class 1S2 according to IEC 60721-3-1
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier
    1
    Function Option
    Standard
    1 Phase Low Current Possible
    false
    Apparent Power
    1.2 kVA 240 V heavy duty)
    Assembly Style
    with heat sink
    Braking To Standstill
    by DC injection
    Computer Port
    true
    Data Format
    8 bits, configurable odd, even or no parity
    Emc Filter
    integrated
    Insulation
    electrical between power and control
    Maximum Associated Fuse Rating
    12.5 A
    Method Of Access
    server Modbus serial
    Mounting Mode
    cabinet mount
    Noise Level
    0 dB
    Number Of Addresses
    1-247
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    class III
    Power Dissipation In W
    natural 27.0 W
    Power Loss Static Current Independent
    8.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    1 kA
    Range Of Product
    Altivar 12
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Speed Range
    1-20
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    false
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    false
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    Yes
    Time Constant
    20 ms +/- 1 ms for reference change
    Transmission Frame
    RTU
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Supply Voltage Num
    200...240 V
    Pep Code
    ENVPEP090201EN
    Width Nominal
    72 mm
    Maximum Acceleration Under Shock Impact (During Operation)
    150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)
    1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)
    1.5 mm at 2...13 Hz
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    false
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    false
    With Safety Function Safely Limited Speed (Sls)
    false
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Asynchronous Motor Control Profilesensorless flux vector control, voltage/frequency ratio (V/f), quadratic voltage/frequency ratio
    Electromagnetic Emissionradiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m, conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m
    Line Current5.9 A 100 V heavy duty), 4.9 A 120 V heavy duty)
    Motor Slip Compensationadjustable, preset in factory
    Sampling Duration20 ms +/- 1 ms logic input, 10 ms analogue input
    Transmission Rate9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
    Certificate AgencyNOM, CSA, C-tick, UL, GOST, RCM, KC
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to IEC 60721-3-2, class 2S1 according to IEC 60721-3-2
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI100204EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    4 Quadrant Operation Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At High Overload2.4 A
    Capacity Of Dc Link470.0 µF
    Connector Type1 RJ45
    Design Of Frequency ChangerU converter
    Housing Materialplastic
    MarkingCE
    Maximum Input Current Per Phase4.9 A
    Motor Power Kw0.37 kW
    Network Frequency50-60 Hz
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Phase1 phase
    Power Loss Per Device Current Dependent27.0 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationsimple machine
    Quantity Per Setset of 1
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Frequency50/60 Hz +/- 5 %
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibusfalse
    Supporting Protocol For Profinet Iofalse
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Tightening Torque0.8 N.m
    Transient Overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
    Type Of Polarizationno impedance
    With Safety Function Safe Programmable Logicfalse
    Parts Quantityset of 1
    Motor Power Kw 10 N Motor Power Kw0.37 kW
    Height Nominal143 mm
    Emc Limit Value (Complied)true
    Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Ipfalse
    Supporting Protocol For Tcp/Ipfalse
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)false
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)1.052 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C without derating, -10-40 °C without derating, -10-60 °C, -10-60 °C, -10-40 °C without derating, -10-40 °C without derating, 40-60 °C with current derating 2.2 % per °C
    Ambient Air Transport Temperature
    -25-70 °C, -25-70 °C
    Relative Humidity
    5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP090201EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP090201EN
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Operating Altitude> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Take BackNo
    China Rohs RegulationX
    Circularity ProfileENVEOLI100204EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    1 phase
    Range Of Product
    Altivar 12
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Number
    1
    Discrete Output Number
    2
    Maximum Output Voltage
    240 V
    Nominal Output Power
    370.0 W
    Speed Drive Output Frequency
    0.5-400 Hz
    Continuous Output Current2.4 A 4 kHz
    Maximum Output Frequency4 kHz
    Nominal Output Current2.4 A
    Relay Output Number1

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Analogue Input Number
    1
    Number Of Input Phases
    3
    Discrete Input Number4
