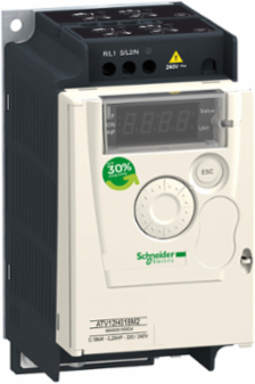

Schneider Electric ATV12P055M2 Altivar 12 Variable Speed Drive 0.55kW 0.75hp 200-240V 1 Phase
Schneider Electric ATV12P055M2 Altivar 12 Variable Speed Drive 0.55kW 0.75hp 200-240V 1 Phase
- MPN: ATV12P055M2
- PPN: SCH-ATV12P055M2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$367.11/ EA
Description
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine frame. The frame surface area should allow heat to dissipate. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. The ATV12 range meets basic machine requirements united with simplicity.
Specifications
Environment
- Product Certifications
- NOM || CSA || C-Tick || UL || GOST || RCM || KC
- Standards
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Operating Altitude
- > 1000...2000 m with current derating 1 % per 100 m || <= 1000 m without derating
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || surge immunity test level 3 IEC 61000-4-5 || voltage dips and interruptions immunity test IEC 61000-4-11
- Marking
- CE
- Noise Level
- 0 dB
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Operating Position
- vertical +/- 10 degree
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
Vibration Resistance1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Regulation Loopadjustable PID regulator
Overvoltage Categoryclass III
Electromagnetic Emissionradiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <5 m || conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m || conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m
Pollution Degree2
Ambient Air Temperature For Operation-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Ambient Air Temperature For Storage-25-70 °C
Assembly Styleon base plate
Ambient Air Transport Temperature-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Rohs Exemption Information
- Yes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Prospective Line Isc
- 1 kA
- Power Dissipation In W
- natural 34.0 W
- Asynchronous Motor Control Profile
- voltage/frequency ratio (V/f) || sensorless flux vector control || quadratic voltage/frequency ratio
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Net Weight
- 0.7 kg
- Type Of Polarization
- no impedance
- Switching Frequency
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Communication Service
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Motor Slip Compensation
- preset in factory || adjustable
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- Number Of Addresses
- 1-247
- Discrete Input Number
- 4
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Width
- 72 mm
- Depth
- 102.2 mm
- Maximum Output Frequency
- 4 kHz
- Height
- 143 mm
- Time Constant
- 20 ms +/- 1 ms for reference change
- Base Load Current At High Overload
- 3.5 A
- Transmission Frame
- RTU
- Relay Output Number
- 1
- With Safety Function Safe Torque Off (Sto)
- false
- Connector Type
- 1 RJ45
- Physical Interface
- 2-wire RS 485
- Tightening Torque
- 0.8 N.m
- With Safety Function Safe Programmable Logic
- false
- Nominal Switching Frequency
- 4 kHz
- Braking To Standstill
- by DC injection
- With Safety Function Safely Limited Speed (Sls)
- false
Network Frequency50...60 Hz
Line Current8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
4 Quadrant Operation Possiblefalse
Apparent Power1.6 kVA 240 V heavy duty)
With Safety Function Safe Direction (Sdi)false
Frequency Resolutionanalog input converter A/D, 10 bits || display unit 0.1 Hz
Maximum Transient Current5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
Analogue Input Number1
Discrete Output Number2
Method Of Accessserver Modbus serial
With Safety Function Safe Operating Stop (Sos)false
Speed Range1-20
Linearity Error+/- 0.3 % of maximum value analogue input
With Safety Function Safe Stop 1 (Ss1)false
Transmission Rate9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Sampling Duration20 ms +/- 1 ms logic input || 10 ms analogue input
With Safety Function Safe Brake Management (Sbc/Sbt)false
Acceleration And Deceleration Rampslinear from 0 to 999.9 s || S || U
Maximum Output Voltage240 V
Speed Drive Output Frequency0.5-400 Hz
With Safety Function Safe Speed Monitor (Ssm)false
Transient Overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
Data Format8 bits, configurable odd, even or no parity
Analogue Output Number1
Insulationelectrical between power and control
Continuous Output Current3.5 A 4 kHz
Brake Chopper Integratedfalse
Quantity Per Setset of 1
Protection Typeline supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by continuous calculation of I²t
Specifications
- Product Or Component Type
- variable speed drive
- Communication Port Protocol
- Modbus
- Product Specific Application
- simple machine
- Supply Frequency
- 50/60 Hz +/- 5 %
- Motor Power Kw
- 0.55 kW
- Mounting Mode
- cabinet mount
Ip Degree Of ProtectionIP20
Nominal Output Current3.5 A
Motor Power Hp0.75 hp
Range Of ProductAltivar 12
[Us] Rated Supply Voltage200...240 V - 15...10 %
Emc Filterintegrated
