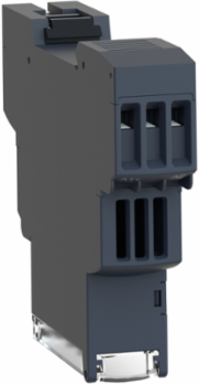

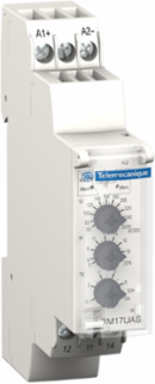

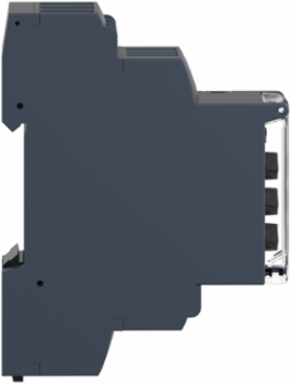

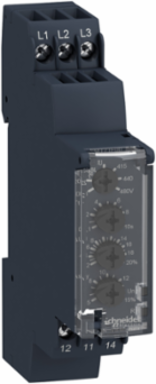

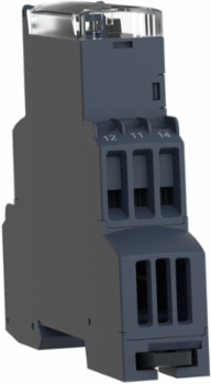

Schneider Electric RM17UAS15 Harmony Control Relay, 5A, 1CO, 65-260V AC/DC

  • MPN: RM17UAS15
  • PPN: SCH-RM17UAS15
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $167.03

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RM17-U control relay allows monitoring of voltage control in single phase network. This modular control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Mexico, United States

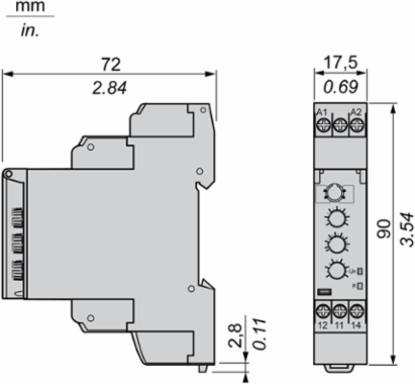

    Depth72 mm

    Complementary Attributes

    Control Circuit Frequency
    50...60 Hz +/- 10 %
    Maximum Measuring Cycle
    150 ms measurement cycle as true rms value
    Maximum Switching Current
    5 A AC/DC
    Minimum Switching Current
    10 mA 5 V DC
    Line Rated Current5 A
    Maximum Power Consumption In W1 W DC
    Maximum Switching Voltage250 V AC/DC

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Dielectric Test Voltage
    2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
    Measurement Accuracy
    +/- 10 % of the full scale value, +/- 10 % of the full scale value
    Operating Rate
    <= 360 operations/hour full load, <= 360 operations/hour full load<= 360 operations/hour full load, <= 360 operations/hour full load
    Utilisation Category
    AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-14 IEC 60947-5-1
    Certificate Agency
    GL, UL, GOST, CSA, C-tick
    Connections - Terminals
    screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...2 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, screw connectors
    Carbon Footprint Of The Distribution Phase [A4]
    0.22642907320932312, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0003431237379090404
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    35 kg CO2 eq., 35.34068057485635
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1601001EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    RM17
    Control Type
    without test button
    Electromagnetic Compatibility
    emission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    Hysteresis
    5-20 % threshold setting
    Measurement Range
    65...260 V AC/DC
    Mounting Support
    35 mm symmetrical DIN rail conforming to IEC 60715
    Overvoltage Category
    III conforming to IEC 60664-1
    Power Consumption In Va
    0-3 VA AC
    Product Or Component Type
    voltage control relay
    Quality Labels
    CE
    Relay Monitored Parameters
    overvoltage or undervoltage detection
    Relay Type
    voltage control relay
    Returnability
    Yes
    Software Version
    v6.2-6
    Sustainable Packaging
    Yes
    Tightening Torque
    0.6-1 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint
    38 kg CO2 eq.
    Database Version
    2024-04
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    70.08
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Width Nominal
    17.5 mm
    [Us] Rated Supply Voltage
    , self-powered, self-powered
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536490075
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Insulation Resistance> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1, > 500 MOhm 500 V DC IEC 60664-1> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60664-1
    Measurement Error< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
    Repeat Accuracy+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 1 % time delay, +/- 1 % time delay+/- 0.5 % input and measurement circuit, +/- 0.5 % input and measurement circuit, +/- 1 % time delay, +/- 1 % time delay
    Vibration Resistance0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1
    [Ui] Rated Insulation Voltage250 V IEC 60664-1, 400 V IEC 60664-1
    Non-dissipating Shock Wave4 kV IEC 60255-5, 4 kV IEC 60664-1, 4 kV IEC 61000-4-5
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.20702328942246598, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.7374334850777773
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Type And Composition1 C/O
    Electrical Durability100000 cycles
    Housing Materialpolycarbonate
    Local SignallingLED (green) for power ONLED (yellow) for relay ON
    Mechanical Durability30000000 cycles
    Operating Positionany position without derating
    Polaritynon reversible polarity on DC supply
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Specific Applicationfor single-phase and DC supply
    Range Of ProductHarmony Control Relays
    Relay NameRM17UAS
    Reset Time1500 ms time delay
    Shock Resistance5 gn IEC 60068-2-27
    Supply Voltage Limits50-270 V AC/DC
    Switching Capacity In Va1250 VA
    Time Delay Typeadjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault
    Pep CodeENVPEP1601001EN
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
    Height Nominal90 mm
    [Uc] Control Circuit Voltage110...240 V
    Run-up Delay At Power-up1000 ms DC500 ms AC
    Package Weight(Lbs)82.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    37.511909546303826
    Circularity Profile
    ENVEOLI1601001EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1601001EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Directives89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-20-50 °C-20-50 °C
    Environmental DisclosureENVPEP1601001EN
    Ip Degree Of ProtectionIP20 IEC 60529 terminals)IP30 IEC 60529 casing)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
    Pep Verification Date2025-03-09
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    voltage control relay
    Range Of ProductHarmony Control Relays

    ETIM

    ETIM 8
    EC001438
    ETIM 9EC001438

    Output Attributes

    Nominal Output Current
    5 A
    Output Contacts1 C/O

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
