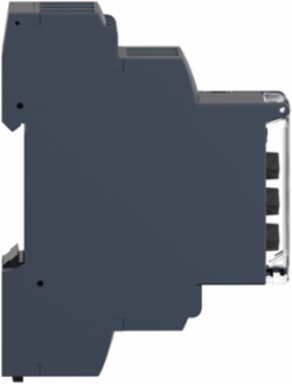

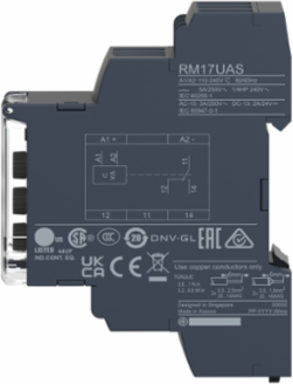

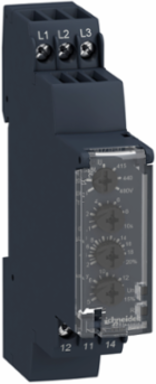

Schneider Electric RM17UAS16 Harmony Voltage Control Relay, 5A, 20-80V AC/DC, 17.5mm Width
- MPN: RM17UAS16
- PPN: SCH-RM17UAS16
CAD
$167.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony RM17-U multi function control relay allows monitoring of voltage control. This modular multi function control relay is ideal for monitoring of electrical values and voltage variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Minimum Switching Current
- 10 mA 5 V DC
- Range Of Product
- Harmony Control Relays
- Power Consumption In Va
- 0-3.9 VA AC
- Product Or Component Type
- voltage control relay
- Relay Name
- RM17UAS
- Relay Type
- voltage control relay
- Time Delay Type
- adjustable 0.1...10 s, 0 + 10 % Tt- time delay upon fault
Maximum Switching Current5 A AC/DC
Measurement Range20...80 V voltage AC/DC 50/60 Hz
Switching Capacity In Va1250 VA
Utilisation CategoryAC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Contacts Type And Composition1 C/O
Product Specific Applicationfor single-phase and DC supply
Relay Monitored Parametersovervoltage or undervoltage detection || self-powered
Complementary
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- [Us] Rated Supply Voltage
- self-powered
- Output Contacts
- 1 C/O
- Polarity
- non reversible polarity on DC supply
- Net Weight
- 0.08 kg
- Control Type
- without test button
- Connections - Terminals
- screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1 || 400 V IEC 60664-1
- Quality Labels
- CE
- Mounting Support
- 35 mm symmetrical DIN rail IEC 60715
- Local Signalling
- power ON LED green) || relay ON LED yellow)
- Compatibility Code
- RM17
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Width
- 17.5 mm
- Maximum Power Consumption In W
- 1.6 W DC
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 1 % time delay
Hysteresis5-20 % threshold setting
Measurement Error< 1 % over the whole range with voltage variation || 0.2 %/°C with temperature variation
Operating Rate<= 360 operations/hour full load
Immunity To Microbreaks20 ms
Operating Positionany position without derating
Maximum Switching Voltage250 V AC/DC
Reset Time1500 ms time delay
Run-Up Delay At Power-Up1000 ms DC || 500 ms AC
Overvoltage CategoryIII IEC 60664-1
Supply Voltage Limits15-100 V AC/DC
Nominal Output Current5 A
Mechanical Durability30000000 cycles
Housing Materialself-extinguishing plastic
Measurement Accuracy+/- 10 % of the full scale value
Tightening Torque0.6-1 N.m IEC 60947-1
Electrical Durability100000 cycles
Environment
- Product Certifications
- CSA || GL || UL || GOST || C-Tick
- Non-Dissipating Shock Wave
- 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Electromagnetic Compatibility
- emission standard for industrial environments conforming to IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 || immunity for industrial environments conforming to NF EN/IEC 61000-6-2
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Directives
- 73/23/EEC - low voltage directive || 89/336/EEC - electromagnetic compatibility
- Relative Humidity
- 95-95 % 55-55 °C IEC 60068-2-30
StandardsIEC 60255-6
Dielectric Test Voltage2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
Shock Resistance5 gn IEC 60068-2-27
Vibration Resistance0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
Pollution Degree3 IEC 60664-1
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504008EN
