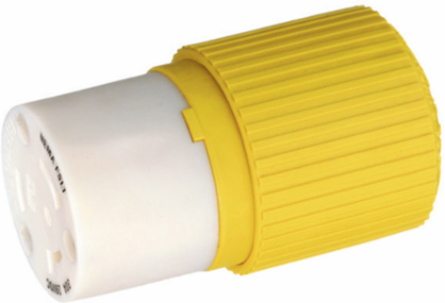

Hubbell Wiring Device-Kellems HBL328DCC Marine 24-32V DC Connector Body, Corrosion Resistant, 30A, 2-Pole
- MPN: HBL328DCC
- UPC: 783585353142
- PPN: HBL-HBL328DCC
- UNSPSC: 39121421
CAD
$166.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Marine 24-32V DC, Connector Body, for Trolling Motor, Corrosion Resistant
Features
- 24-32V DC
- Connector Body
- ForTrolling Motor
- Corrosion Resistant
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Width | 5.120 in |
| Standards - RoHS Compliance Status | CM |
| Application | Marine Wiring Devices |
| Conductor Range | #14 AWG to #10 AWG |
| Insulation | Insulated Body |
| Number of Conductors | 3-Wire Grounding |
| Special Features | Corrosion Resistant |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Weight | 0.45 lb. |
| Connectivity | Screw Terminals |
| Nema Rating | Non-NEMA |
| Number Of Poles | 2-Pole |
| Description - Invoice | LKG MARINE CONN, 24-32 VDC |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Cord Mounted |
| Material | Composite |
| BOX SIZE | 6.900x14.400x10.700 (in) |
| Carton - Number of Sub Packs | 50 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585353142 |
| Case Weight | 5.300 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 30 A |
|---|---|
| Industry Standard(s) | UL Listed |
| Amperage Rating | 30 A |
| Color | Yellow |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| NEMA Rating | Non-NEMA |
| Number of Poles | 2-Pole |
| Standard | UL Listed |
| Voltage Rating | 28V DC kV |
| General Literature Asset 1 Display Text | Hubbell Marine Full Line Catalog |
| Display Size | Standard |
| Number Of Conductors | 3-Wire Grounding |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A110 |
| Current Rating | 30 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 17.850 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
