Hubbell Wiring Device-Kellems HBL2823SW Watertight Twist-Lock Connector 30A 3-Phase 277/480V AC 4-Pole
- MPN: HBL2823SW
- UPC: 783585456676
- PPN: HBL-HBL2823SW
- UNSPSC: 39121421
CAD
$362.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

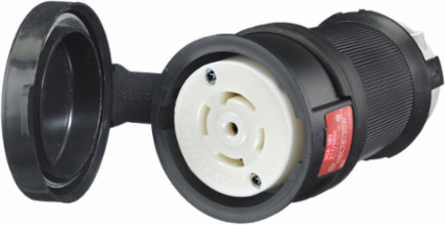

Locking Devices, Twist-Lock®, Watertight Safety-Shroud® Connector, 30A, 3 Phase Y 277/480V AC; 4 Pole, 5 Wire Grounding, NEMA L22-30R, Black Valox® housing, white Valox® clamps.
Features
- UL Type 4X Environmental seal protects connection while in use
- Impact resistant shroud protects blades against bending and breaking
- Reduces exposure to arcing when connecting or disconnecting under load
- Superior cord grip design protects terminations from excess strain
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 4.38 in x 2.75 in x 2.75 in
- Length
- 4.38 in
- Amperage Rating
- 30 A
- Color
- Black, White
- NEMA Rating
- L22-30R
- Size
- 4.38 in x 2.75 in x 2.75 in
- Type
- Connector
- Voltage Rating Description
- 3-Phase Y 277/480 VAC
- Engineering Drawing 1 Display Text
- HBL2823SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Dielectric Strength
- Withstands 2,000V minimum
- Number Of Poles
- 4-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #16 AWG to #8 AWG
- Description - Invoice
- LKG WT S/SHRD CONN, 30A 3P 277/480V, L22
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Cord Range
- 0.350"-1.150" (9-29)
- Current Rating
- 30 A
- BOX SIZE
- 5.600x18.900x7.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585456676
- Case Weight
- 9.650 lb.
Current / Amperage Rating30 A
Height2.75 in
PerformanceElectrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V0 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
ApplicationHeavy Duty Industrial
Environmental ConditionsWatertight
Number of Poles4-Pole
Special FeaturesShrouded Watertight Construction
Voltage Rating3-Phase Y 277/480 VAC
Width2.75 in
General Literature Asset 1 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Nema RatingL22-30R
Number Of Wires5-Wire
Phase3 Phase WYE
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Diameter0.350-1.150 in
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
NAICS Code335931A102
Certifications
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42;UL;CSA Certified to Type 4, 4X and Type 12
