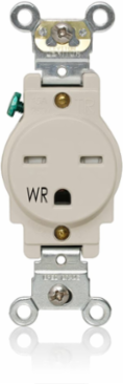

Leviton W5661-T0T Weather-Resistant Single Receptacle, 15 Amp 250 Volt, NEMA 6-15R, Light Almond
Leviton W5661-T0T Weather-Resistant Single Receptacle, 15 Amp 250 Volt, NEMA 6-15R, Light Almond
- MPN: W5661-T0T
- UPC: 078477320365
- PPN: LEV-W5661-T0T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.00/ EA
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather- and Tamper-Resistant, Smooth Face, 15 Amp, 250 Volt, Back and Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Features
- Leviton’s 250 Volt Tamper-Resistant Receptacles are the industry’s first and only solution to the revisions of the NEC Article 406.12! These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.
- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance
- Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
Specifications
Material Specifications
- Body Material
- Nylon
- Ground Contacts
- Phosphor Bronze
- Line Contacts
- Brass Triple Wipe 0.040"
- Mounting Strap
- Nickel-Plated Steel
- Terminal Clamps
- Brass
Face MaterialPBT
Grounding Screw#8 Brass
Mounting Screws#6 Stainless Steel
Tamper Resistant Shutter MechanismThermoplastic
Terminal Screws#10 Brass
Mechanical Specifications
- Product ID
- Ratings are Marked on Device
- Terminal Accom.
- #14-#10 AWG Solid or Stranded
Screw Terminal Torque14-18 in-lbs
TerminationBack and Side Wire
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Color
- Light Almond
- Feature
- Weather- and Tamper-Resistant | Smooth Face | RoHS Compliant

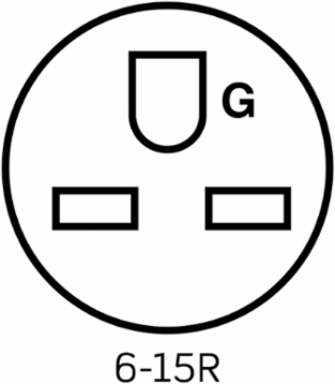

- NEMA
- 6-15R
Device TypeSingle Receptacle Outlet
GradeHeavy-Duty Industrial Specification Grade
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating TemperatureMaximum Continuous 75°C, minimum -40°C (w/o impact)
Electrical Specifications
- Amperage
- 15 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 250 VAC
Dielectric Voltage2000 VAC
HP Rating1-1/2 HP
Temperature RiseMax 30 C
Wire3
Standards & Certifications
- NEMA Rating
- WD-1 and WD-6
Standards and CertificationsUL 498; CSA C22.2, No. 42; Fed Spec WC-596; NOM
