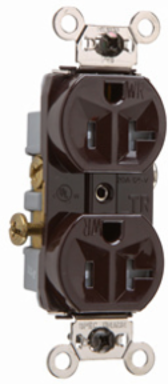

Pass & Seymour WR20TR 20A 125V Commercial Grade Tamper-Resistant Weather-Resistant Duplex Receptacle, Brown, 0.78 Inch Depth, 2.635 Inch Height, 1.322 Inch Width
- MPN: WR20TR
- UPC: 785007242553
- PPN: P-S-WR20TR
CAD
$18.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Commercial Grade Tamper-Resistant Weather-Resistant Duplex Receptacle, Brown, 0.78 Inch Depth, 2.635 Inch Height, 1.322 Inch Width
Features
- Auto-ground clip assures positive ground.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Brown
- Width
- 1.322 in
- Country of Origin
- Mexico
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Features
- Brass Mounting Strap
- Outlet Type
- Weather-Resistant
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Dielectric Strength
- Withstands 1500V minimum
- Environmental Conditions
- Flammability: UL94 V2
Height2.635 in
Product LinePass & Seymour
Special FeaturesAuto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Side wire capability. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention.
StandardUL498
Voltage125.0 V
FeaturesWeatherproof
Indoor/OutdoorOutdoor
Is Tamper-ResistantYes
StandardCSA C22.2 No. 42
Outlet TypeTamper-Resistant
Connection LocationSide Only
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Wire Connection TypeInternal Pressure Plates
