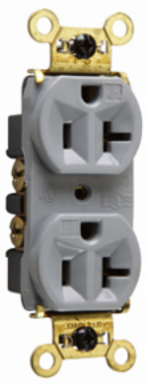

Pass & Seymour WR5362GRY Weather-Resistant Heavy Duty Receptacle, 20A 125V, Gray, 2.635 Inch Height
- MPN: WR5362GRY
- UPC: 785007242539
- PPN: P-S-WR5362GRY
CAD
$58.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Weather-Resistant Heavy Duty Receptacle, 20A 125V, Gray, 2.635 Inch Height
Features
- Auto-ground clip assures positive ground.
- WR marking on face as required by UL Standard.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- UV-resistant nylon face for longer life under adverse environmental conditions.
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Gray
- Width
- 1.322 in
- Phase
- Three
- Standard
- UL 498
- Standard
- FEDSPEC
- Features
- Weatherproof
- Indoor/Outdoor
- Outdoor
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Features
- Brass Mounting Strap
- Outlet Type
- Weather-Resistant
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Special Features
- Weather resistant, tamper resistant\
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
