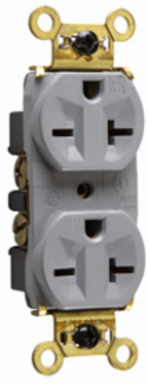

Pass & Seymour WR5862GRY Weather-Resistant Heavy Duty Receptacle, 20A 250V, 2.635 Inch Height
- MPN: WR5862GRY
- UPC: 785007243161
- PPN: P-S-WR5862GRY
CAD
$67.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Weather-Resistant Heavy Duty Receptacle, 20A 250V, 2.635 Inch Height
Features
- Auto-ground clip assures positive ground.
- WR marking on face as required by UL Standard.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- UV-resistant nylon face for longer life under adverse environmental conditions.
- Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Height
- 2.635 in
- Width
- 1.322 in
- Country of Origin
- Mexico
- Standard
- FEDSPEC
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Features
- Brass Mounting Strap
- Outlet Type
- Weather-Resistant
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Color
- Gray
PhaseThree
Amperage20.0 A
StandardUL 498
Voltage250.0 V
Number of Wires3.0
Indoor/OutdoorOutdoor
Number of Receptacles2.0
Application SectorCommercial
NEMA Configuration Code6-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Special FeaturesWeather resistant, tamper resistant\
Product LinePass & Seymour
